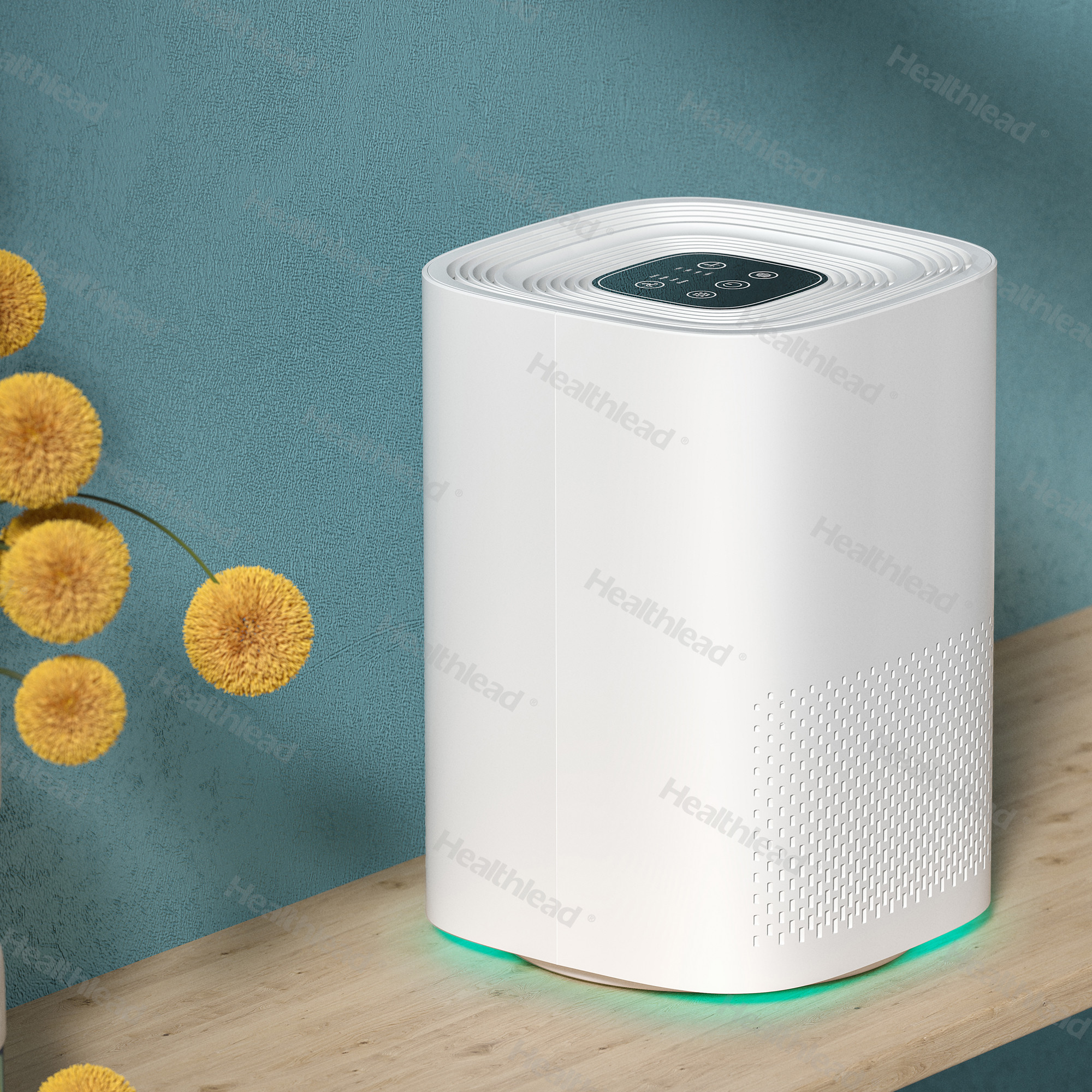

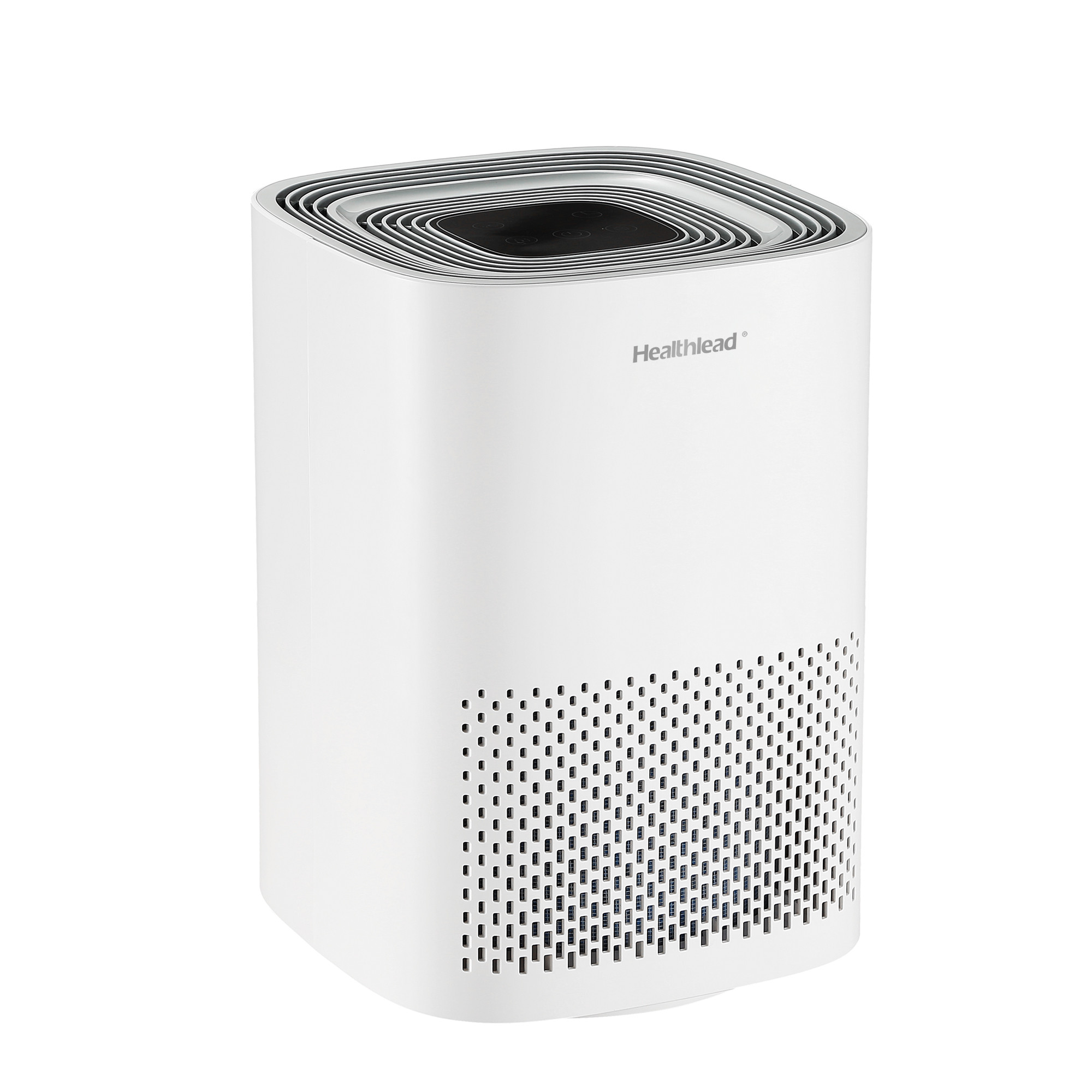

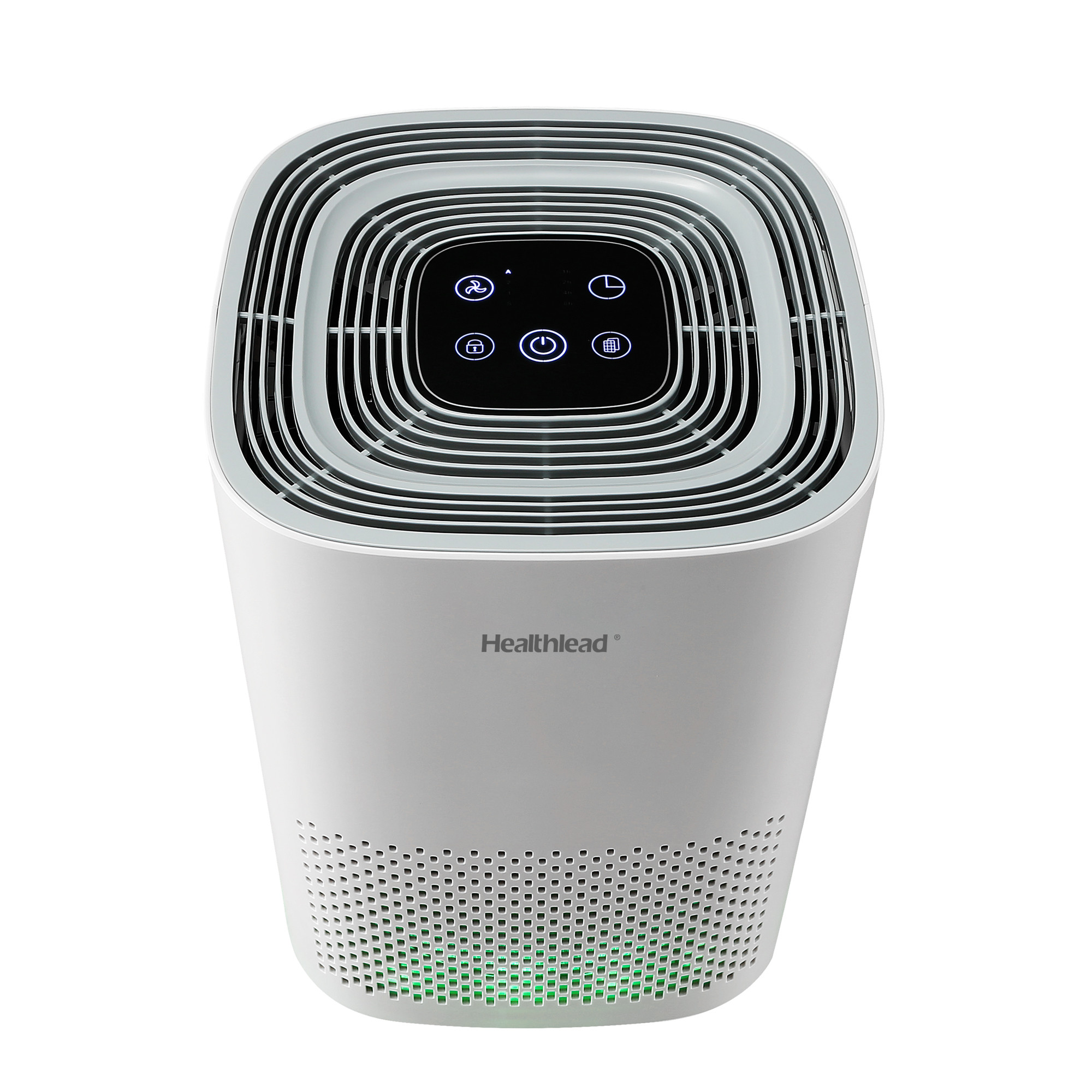

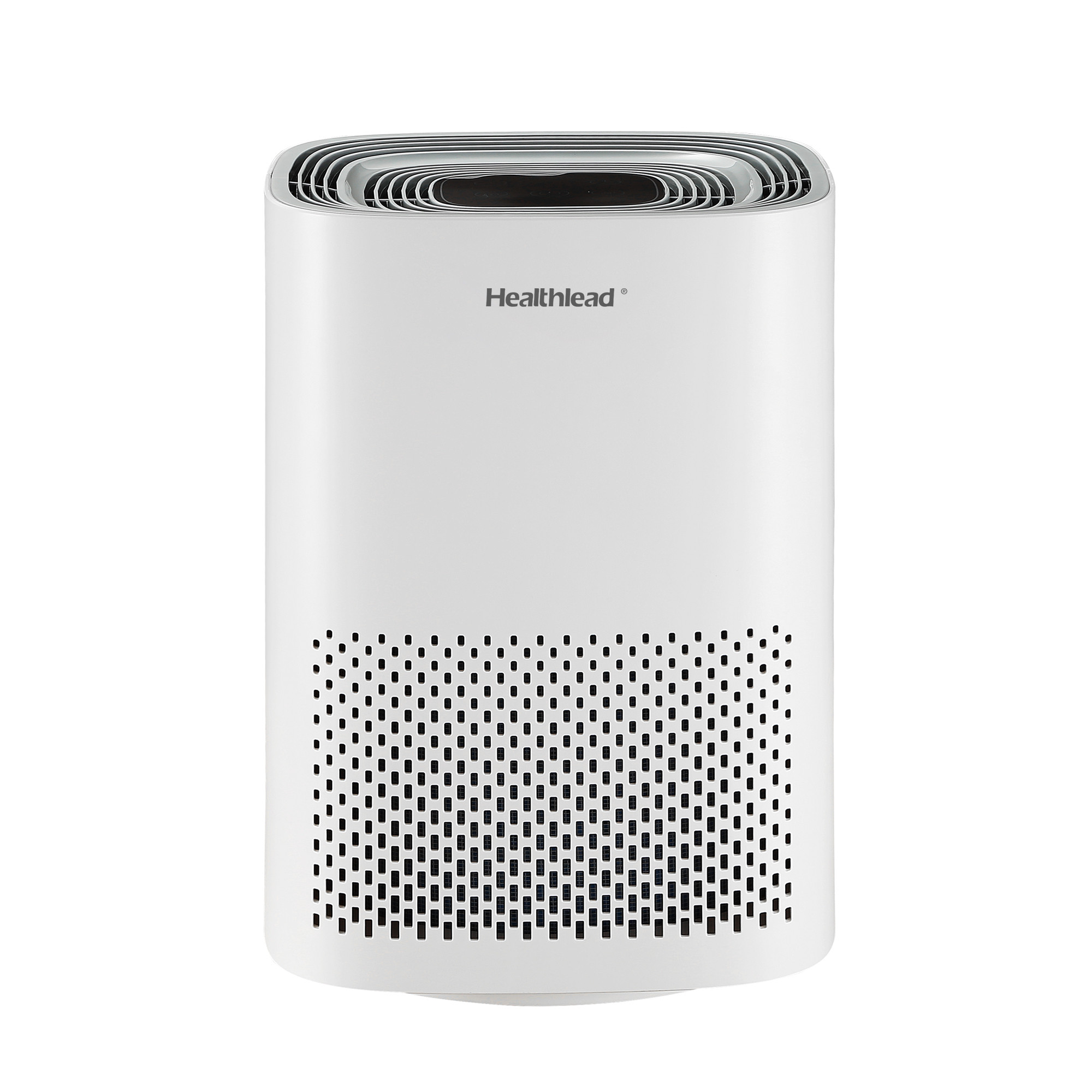

Vertical And Square Small Desktop Air Purifier
Vertical And Square Small Desktop Air Purifier Vertical And Square Small Desktop Air Purifier Vertical And Square Small Desktop Air Purifier Vertical And Square Small Desktop Air Purifier Vertical And Square Small Desktop Air Purifier

Vertical And Square Small Desktop Air Purifier

Product Details:
Place of Origin: Guangdong, China
Brand Name: Healthlead
Certification: CQC, CE(LVD), CE(EMC), ETL, CARB, CB, ROHS, GS, PSE
Model Number: EPI131C
Payment & Shipping Terms:
Minimum Order Quantity: 2000 Pieces
Price: Negotiable
Packaging Details: EPI131C <br>1 piece product in one giftbox package, and 2 piece giftbox in a carton.
Delivery Time: 35-40 Days
Payment Terms: L/C, T/T
Supply Ability: 1500piece/day
Contact Now

Detail Information
Smoke CADR (CFM): 70 Dimensions (L X W X H (Inches): 210X210X310mm
Power (W): 21 Voltage (V): AC120/230V
Warranty: 1 Year, Type: Hepa Filter
Installation: PORTABLE PM CADR: 120m3/h
App-Controlled: YES Featured Function: Auto Mode And Sleep Mode Function
Recommended Room Size（square Feet）: 15 Air Quality Display: YES
Timer: Four Timer Seting Power Off. Color: White
Weight: 1.5kg Filter: Pre-filter + HEPA + Activated Carbon
Speed Setting: Three Speed Setting Display, Plus Night Mode
Highlight:

Square Small Desktop Air Purifier

,

Vertical Small Desktop Air Purifier

,

200M3/h Small Desktop Air Purifier

Product Description

EPI131C Highly efficient filtration and adsorption in vertical and square, beautiful and white appearance.

Product status Lauch
Tooling status Finished
Lead Time 35~40days
Product size 210*210*310mm
Safty standard Intertek 3136602
power 26W DC
work voltage 120V
Air flow 200M3/h
noise(pressure level) 55dB(A)
Coverage area 8~14
Surface treatment ABS,
Pre filter Yes, PP filter
HEPA filter H13 grade
Carbon filter Yes
Filter Dimension:(LxWxH) Φ179.4*166.5mm
Filter Gross weight: 442g
Filter Carton box size 185*185*180mm
Filter Gift Carton box size 197*197*195mm
speed S.1.2.3
sleep mode YES
filter exchange alert YES
Loading Qty(20'/40'40'HQ) 2450
Gift box Size: 250*250*365mm
Carton box size: 265*265*385mm
Vertical And Square Small Desktop Air Purifier 0
Vertical And Square Small Desktop Air Purifier 1
Specification
Packing & Delivery
One piece in one giftbox.
2pcs in a carton
Giftbox Size: 250X250X360mm
Master Carton Size: 520X265X380mm
20 FCL: 1056 pcs
40 FCL: 2208 pcs
40 HQ: 2576 pcs

Vertical And Square Small Desktop Air Purifier 3
Company Profie
Healthlead is one major leading professional air purifier, mini dehumidifier and environmental protection material developing, manufacturing and marketing high- tech enterprise, Registered capital is US$10 million and factory coverage is 42,000 sq meters . Owing with professional and innovating product development capability, Healthlead becomes key OEM & ODM supplier of mostly im porter and distributor in North America, China and Europe etc. Healthlead factory quality system was approved by ISO9001, ISO1400 1, BSCI, and authorized by US JCS, Whirlpool, The Home Depot, TTI, Germguardian, Homedics, Bissell, Europe ALDI, LIDL, B&Q, Auchan, China Suning, Huawei, Haier, Konka, TCL, Airmate, Chigao, Royalstar, Westinghouse for factory audit. The factory owns in-house safety approval lab to performance and relia bility test to meet different customer’s product need. Daily production capability is 20,000 units to 25,000 units in order to on-time delivery.
Vertical And Square Small Desktop Air Purifier 5
Vertical And Square Small Desktop Air Purifier 7
Vertical And Square Small Desktop Air Purifier 9
Vertical And Square Small Desktop Air Purifier 11
Vertical And Square Small Desktop Air Purifier 13
Vertical And Square Small Desktop Air Purifier 15
Vertical And Square Small Desktop Air Purifier 17
Vertical And Square Small Desktop Air Purifier 19
Vertical And Square Small Desktop Air Purifier 21
Our Advantages
20 years experience in airpurifier OEM & ODM service. Approved by ISO9001,2015, ISO14001. ETL, GS, CE safety laboratories authorized by Intertek. More than 30 R& D engineers. Six-stage of air purification system combined pre-filter, Hepa filter, active carbon filter, Nona-silver antibacterial, ionizer, photocatalyst filter, UV.
FAQ
1.What is CADR?
CADR stands for “Clean Air Delivery Rate,” which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room. Clean Air Delivery Rate From air cleaner to air cleaner, compare the CADR numbers.
First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

2. What is CFM and CMH of CADR?
1 CFM=1.71CMH

3. TROUBLESHOOTING GUIDE
A. Unit shuts off unexpectedly or does not operate.
Check that the unit is plugged into a working electrical outlet.
Check that the motor protector is triggered.
Check that the filter is in the unit and locked.
Check that the front panel is latched firmly in place.
B. No air circulating from unit
Unplug unit. Check filter. Replace filter if necessary.
C. Increase in noise level
Make sure the filter is clean. Replace if necessary.
D. Odors and smoke are not removed.
Clean or replace the filter if it appears to be heavily soiled.
E. The discharged air has an aroma or odor
Check to see if the filter is heavily soiled. Replace the filter. Turn off the Ionizer
F. Air quality indicator constantly shows poor air quality
Wipe the lens with a clean cloth or vacuum to remove any dust that has settled on the sensor.
G. Filter change indicator flicks
Need to manual reset by long pressing filter change icon for 5 seconds, then release after heard the buzzer
H. The unit can not power on without buzzer and power icon lighting
Replace with new power PCBA
I. The unit can power on with power icon lighting, but speed can not be set.
Replace with new control PCBA
J. The unit can power on but some displays show defective
Replace with new control PCBA
K. The unit’s PM 2.5 digital value shows different from ambient environment within 30% tolerance.
Comply with particle sensor spec.
L. The unit’s PM 2.5 digital value shows different from ambient environment beyond 30% tolerance.
Replace with new particle sensor.
M. The unit’s VOC digital value shows different from ambient environment.
Replace with new VOC sensor.
N. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.
Remove filter plastic bag and re-install filter, then re-start.
O. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.
Replace with new motor
P. No ion comes out
Disassembly the unit, and re-insert ionizer module wire socket
Q. There has odor coming out from outtake grill
Replace with new filter
R. The unit is power on but some display missed
Replace with new display board.
S. Wifi can not be connected
Reset the route as 2.4G
T. Wifi can not be connected
Replace with new Wifi module
U. Power button is invalid after turn on with heard buzzer
Replace with new control panel or magnetic switch board
