Name: Healthlead Hepa Air Purifier With Uv Sanitizer
Brand: Healthlead Corporation Limited
SKU: EPI510
Availability: InStock

Detail Information
Product Description

Detail Information
Child Lock:	Lock All Button	Filter:	Filter Replacement Reminder And Reset Function
UV:	With UV Replacement Indicator	Timer:	1/2/4//8H
Speed:	1,2,3,4,5 Gears	Mode:	4 Mode
Turbo Mode:	Directly Change To 5th Gear Wind Speed	Button:	Touch Button Type
Rated Voltage (V):	120	Rated Power(W):	90
CADR(m³/h):	500
Highlight:	hepa air purifier with uv sanitizer , healthlead hepa air purifier , healthlead uv room air purifier

Product Description

Hepa Air Purifier EPI510

1. Product Discription

The EPI510 air sterilizer has multiple filtration and purification systems, which can efficiently filter suspended particles such as dander, hair, dust, pollen, smoke, etc.,

Remove odors such as indoor organic gases, VOC and TVOC, effectively trageting air purification and disinfection.

The Plastic frame filterin the composite high-efficiency pre-filter cna filter large suspended particles in the air and can be washed for a long time without replacement;

The primary effect filter in the composite high-efficiency pre-filter can effectively block large particles of suspended matter such as hair, dust, paper dust. etc;

Professional high-efficiency antibacterial HEPA, using the principle of laminar flow filtration, to filter out common particles;

Cooperates with the special UV lamp, the filter kill rate of Staphylococcus aureus reaches 99%, Healthy negative ions can release more than 3 million negative ions, increase the "vitamins" in the air, and improve the comfort of the ambient air.

2. Specification and Filter

Specification

•Noise Level (dB): 55 dB for high Speed

•Coverage: less than 72 sq meters

•Work voltage: AC120V /60Hz

•Power: 90W ( High Speed with DC motor)

•1.8 meter power cord

•CADR: 500M3/H

Filter

•PP pre-filter to filter breathable big particle such as hair, dander etc.

•H12 HEPA filter to collect 0.3 micron small floating particles such as dust, pollen, smoke.

•Active carbon filter to resolve and attract odors such as formaldehyde, VOCs,nicotine etc

3. Function

1,Efficient removal and adsorption of dust particles, pollen, mites, hair dander, organic gases, etc..

2,Automatic mode function.

3,Manual mode function.

4,Sleep working mode.

5, capacitive touch button.

6, PM2.5/VOC color level display function.

7, HEPA filter reset function.

8, child lock function.

9, WIFI function (medium standard).

11, UV light function.

12, UV light timing function;.

12, negative ion function.

13, plasma function.

4.Product Pictures

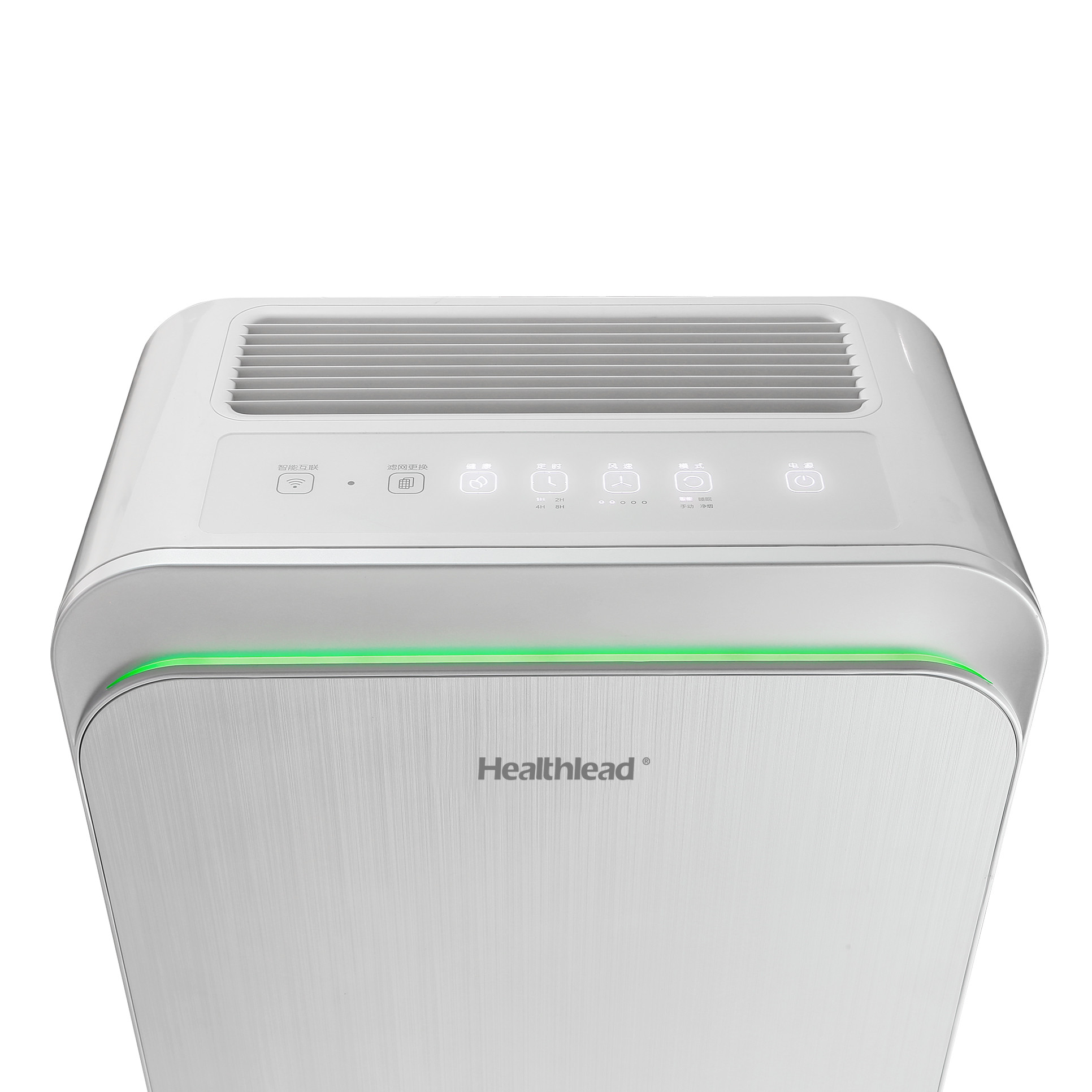

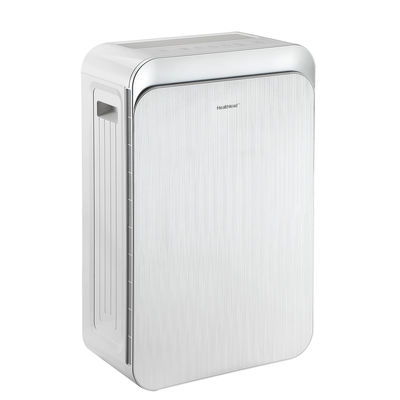

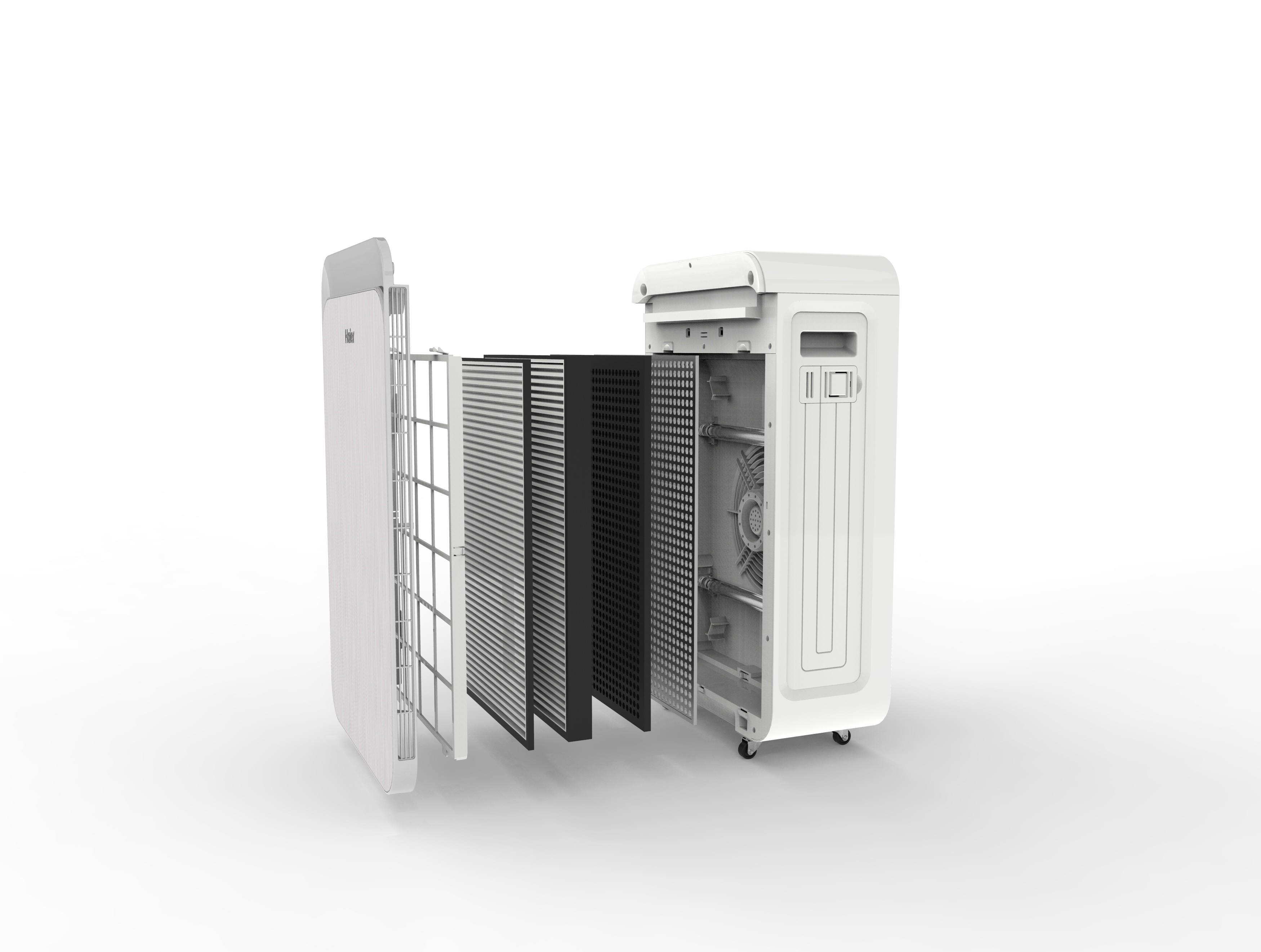

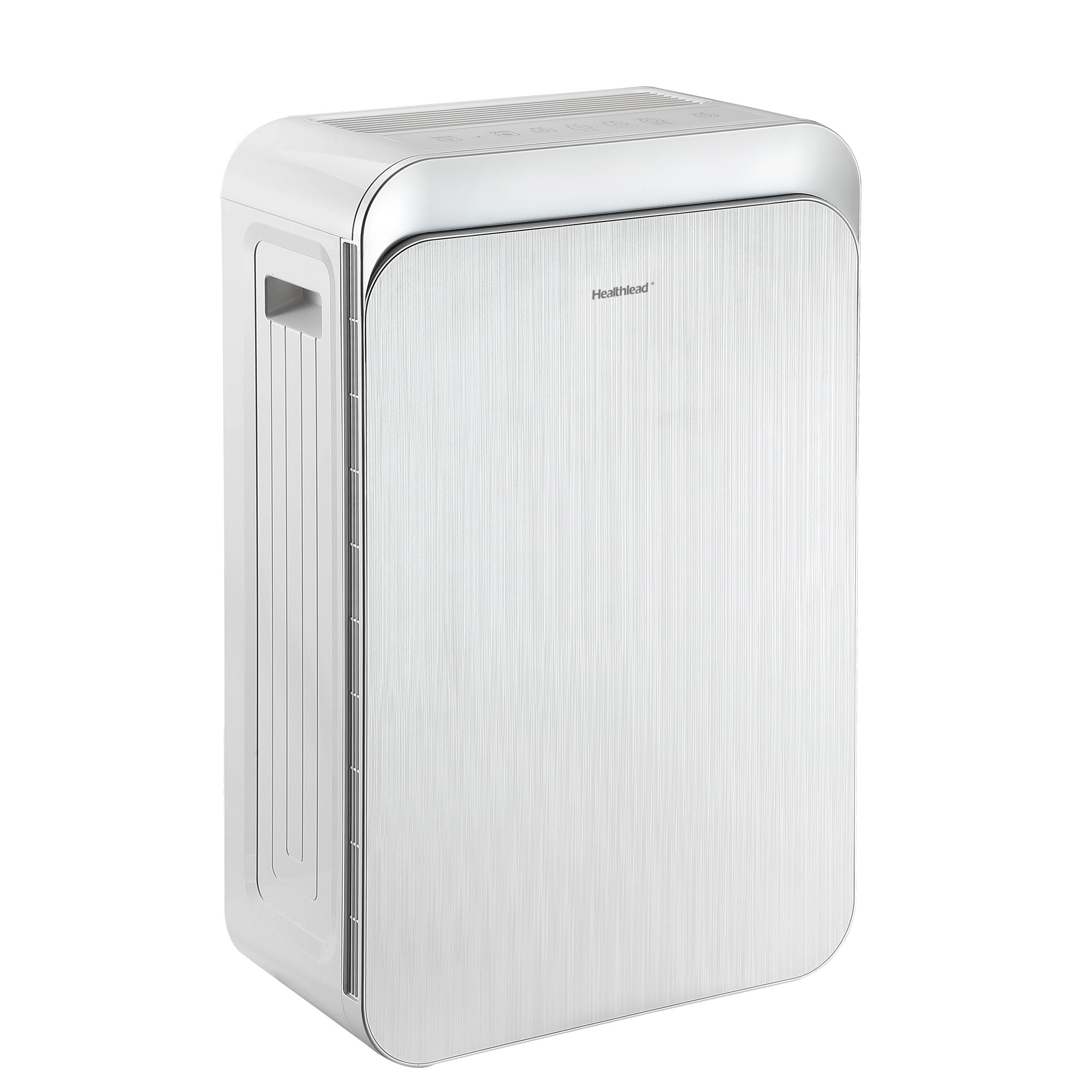

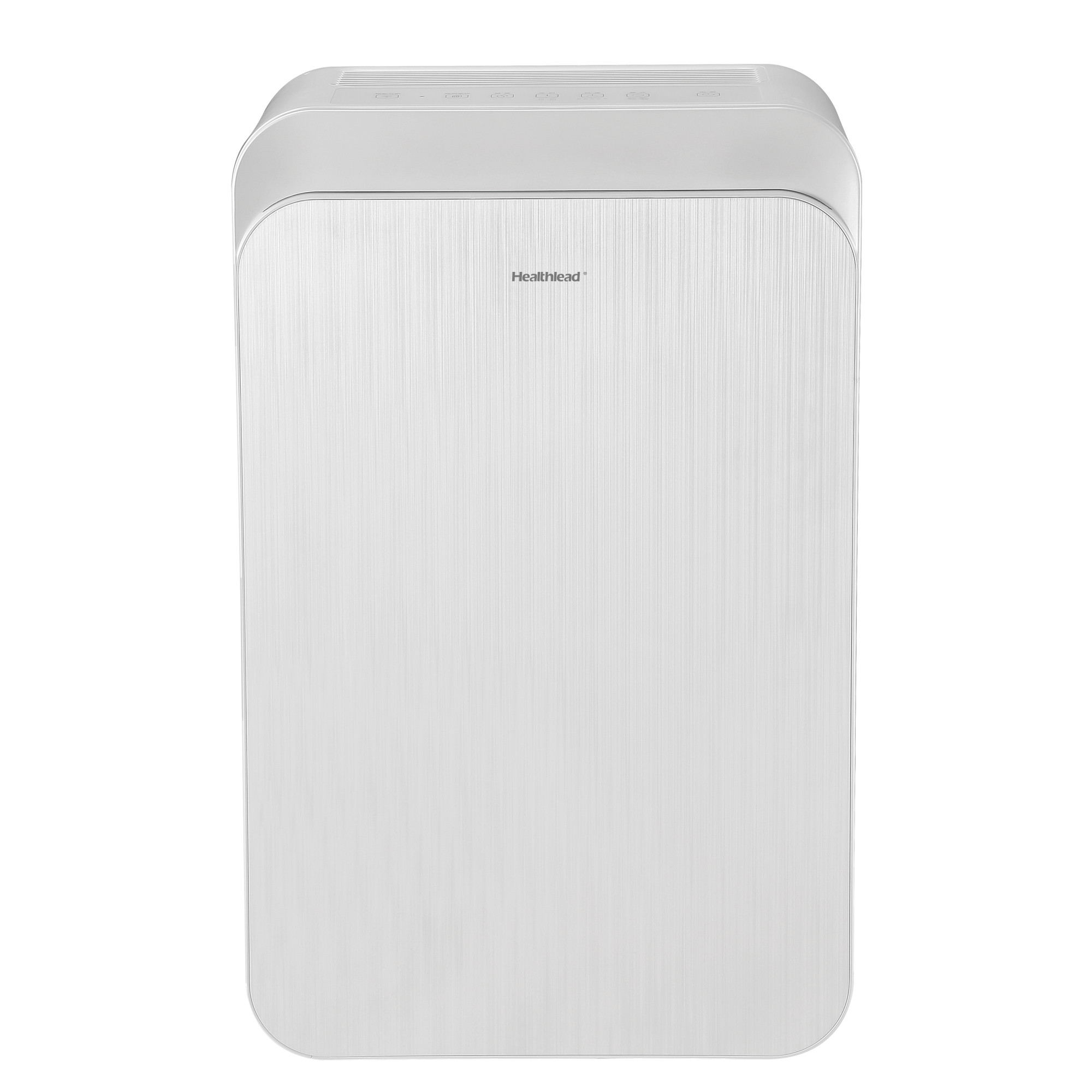

Healthlead Hepa Air Purifier With Uv Sanitizer 0

Healthlead Hepa Air Purifier With Uv Sanitizer 1

Healthlead Hepa Air Purifier With Uv Sanitizer 2

Healthlead Hepa Air Purifier With Uv Sanitizer 3

Healthlead Hepa Air Purifier With Uv Sanitizer 4

Healthlead Hepa Air Purifier With Uv Sanitizer 5

Healthlead Hepa Air Purifier With Uv Sanitizer 6

Healthlead Hepa Air Purifier With Uv Sanitizer 7

5. Certificate

Healthlead Hepa Air Purifier With Uv Sanitizer 8

Healthlead Hepa Air Purifier With Uv Sanitizer 9

Healthlead Hepa Air Purifier With Uv Sanitizer 10

Our Advantages

20 years experience in airpurifier OEM & ODM service. Approved by ISO9001,2015, ISO14001. ETL, GS, CE safety laboratories authorized by Intertek. More than 30 R& D engineers. Six-stage of air purification system combined pre-filter, Hepa filter, active carbon filter, Nona-silver antibacterial, ionizer, photocatalyst filter, UV.

FAQ

1.What is CADR?

CADR stands for “Clean Air Delivery Rate,” which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room. Clean Air Delivery Rate From air cleaner to air cleaner, compare the CADR numbers.

First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

2. What is CFM and CMH of CADR?

1 CFM=1.71CMH

3. TROUBLESHOOTING GUIDE
A. Unit shuts off unexpectedly or does not operate.

Check that the unit is plugged into a working electrical outlet.

Check that the motor protector is triggered.

Check that the filter is in the unit and locked.

Check that the front panel is latched firmly in place.
B. No air circulating from unit

Unplug unit. Check filter. Replace filter if necessary.
C. Increase in noise level

Make sure the filter is clean. Replace if necessary.
D. Odors and smoke are not removed.

Clean or replace the filter if it appears to be heavily soiled.
E. The discharged air has an aroma or odor

Check to see if the filter is heavily soiled. Replace the filter. Turn off the Ionizer
F. Air quality indicator constantly shows poor air quality

Wipe the lens with a clean cloth or vacuum to remove any dust that has settled on the sensor.
G. Filter change indicator flicks

Need to manual reset by long pressing filter change icon for 5 seconds, then release after heard the buzzer
H. The unit can not power on without buzzer and power icon lighting

Replace with new power PCBA
I. The unit can power on with power icon lighting, but speed can not be set.

Replace with new control PCBA
J. The unit can power on but some displays show defective

Replace with new control PCBA
K. The unit’s PM 2.5 digital value shows different from ambient environment within 30% tolerance.

Comply with particle sensor spec.
L. The unit’s PM 2.5 digital value shows different from ambient environment beyond 30% tolerance.

Replace with new particle sensor.

M. The unit’s VOC digital value shows different from ambient environment.

Replace with new VOC sensor.

N. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.

Remove filter plastic bag and re-install filter, then re-start.

O. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.

Replace with new motor

P. No ion comes out

Disassembly the unit, and re-insert ionizer module wire socket

Q. There has odor coming out from outtake grill

Replace with new filter

R. The unit is power on but some display missed

Replace with new display board.

S. Wifi can not be connected

Reset the route as 2.4G

T. Wifi can not be connected

Replace with new Wifi module

U. Power button is invalid after turn on with heard buzzer

Replace with new control panel or magnetic switch board

Tag:

Product Details:
Place of Origin:	Guangdong, China
Brand Name:	Healthlead
Certification:	ETL/AHAM
Model Number:	EPI510
Payment & Shipping Terms:
Minimum Order Quantity:	1000piece
Price:	Negotiable
Packaging Details:	EPI510 one piece product in one Carton box. /Carton size 535x323x800mm
Delivery Time:	45 Days
Payment Terms:	L/C, T/T
Supply Ability:	600piece/day
