China Healthlead Air Purifier manufacturer

EPI088 2 In 1 Air Purifier And Humidifier Particle Sensor Equipped PM2.5 Real Time Value

Product Details:
Place of Origin: Guangdong, China
Brand Name: Healthlead
Certification: -
Model Number: EPI088
Payment & Shipping Terms:
Minimum Order Quantity: 5000piece
Price: Negotiable
Packaging Details: EPI088 One piece in one giftbox, Two giftbox in one carton/Master Carton Size:396x414x416 mm
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 1800piece/day

Detail Information

Working Voltage: AC120V 60Hz / AC220-240V 50Hz Standby Power Consume: Less Than 1W
Rated Power: 35W Rated Current: 0.38A
CADR (particles): 80m³/h Purification Energy Efficiency: Qualified Level
Humidification: 200mL/h Tank Capacity: 3L
Timer: 1,2,4,8H Speed: 1,2,3,S
High Light:

2 in 1 air purifier and humidifier

,

PM2.5 2 in 1 air purifier and humidifier

,

2 in 1 air cleaner humidifier

Product Description

EPI088, 2 in 1 Air purifier and humidifier, particle sensor equipped, ditect and digital display PM2.5 real time value.

1. Product Discription

1. This product is designed and manufactured by our company, its body is vertical column, beautiful appearance, white; the lower two sides into the air, from the top out of the air; the power plug for the European standard two round plug.

2. This product is suitable for office, home and other indoor environments, efficient filtration and adsorption (including lint, dust particles, pollen, mites, organic gases, etc.), and simple functions, with filtration,, humidification, speed control, negative ions, timing, automatic, filter life timing reset function. Display operation panel placed on the top plane, and easy to operate.

 2. Product features and functions

Product features and functions

1. Highly efficient in removing and adsorbing dust particles, pollen, mites, hair dander, organic gases, etc.

2. Touch button control.

3. PM2.5 level color display (green for excellent air quality, yellow for good air quality, red for poor air quality).

4. Automatic air purification function (can automatically adjust the size of the motor wind speed according to the superior and inferior air quality level).

5. Timing shutdown function.

6. Filter timing function. (2000H)

7. Humidification function.

8. Automatic stop humidification function after the water tank is short of water. Shortage of water reminder function(Humidification indicator flashes)

9. Removal of the water tank has a power-off protection function.

3. Product Technical parameters



Specifications

Parameter

Working Voltage

AC120V 60Hz / AC220-240V 50Hz

Rated Power

30W

Max noise (dB/A)

55

Smoke CADR

80m³/h

Application

Desktop, Small room

Humidifying Capacity

200 ml/h

Water Tank capacity

3.0 L

Filtering system

(Pre-filter,Hepa filter,charcoal filter)

Featured Function

Air purifier 2 in 1 (Air Purifier&Humidifiers)

Three speed setting display,night mode

Four timer setting power off

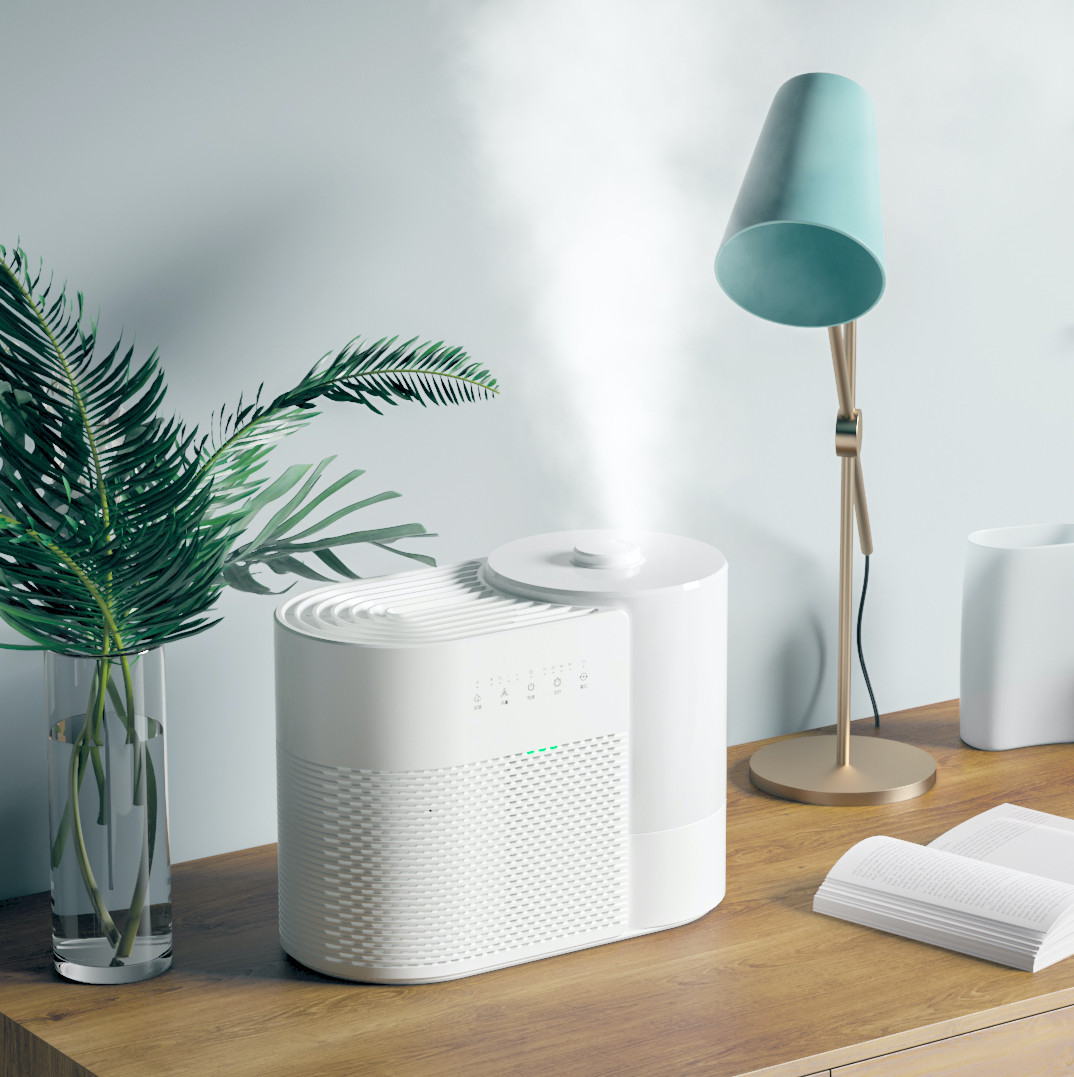

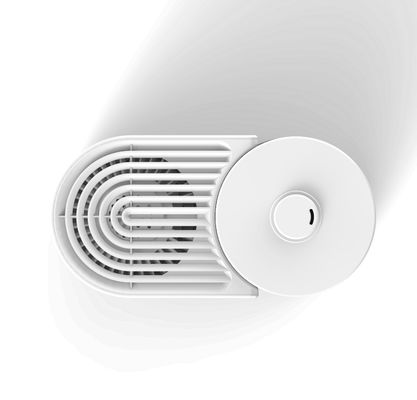

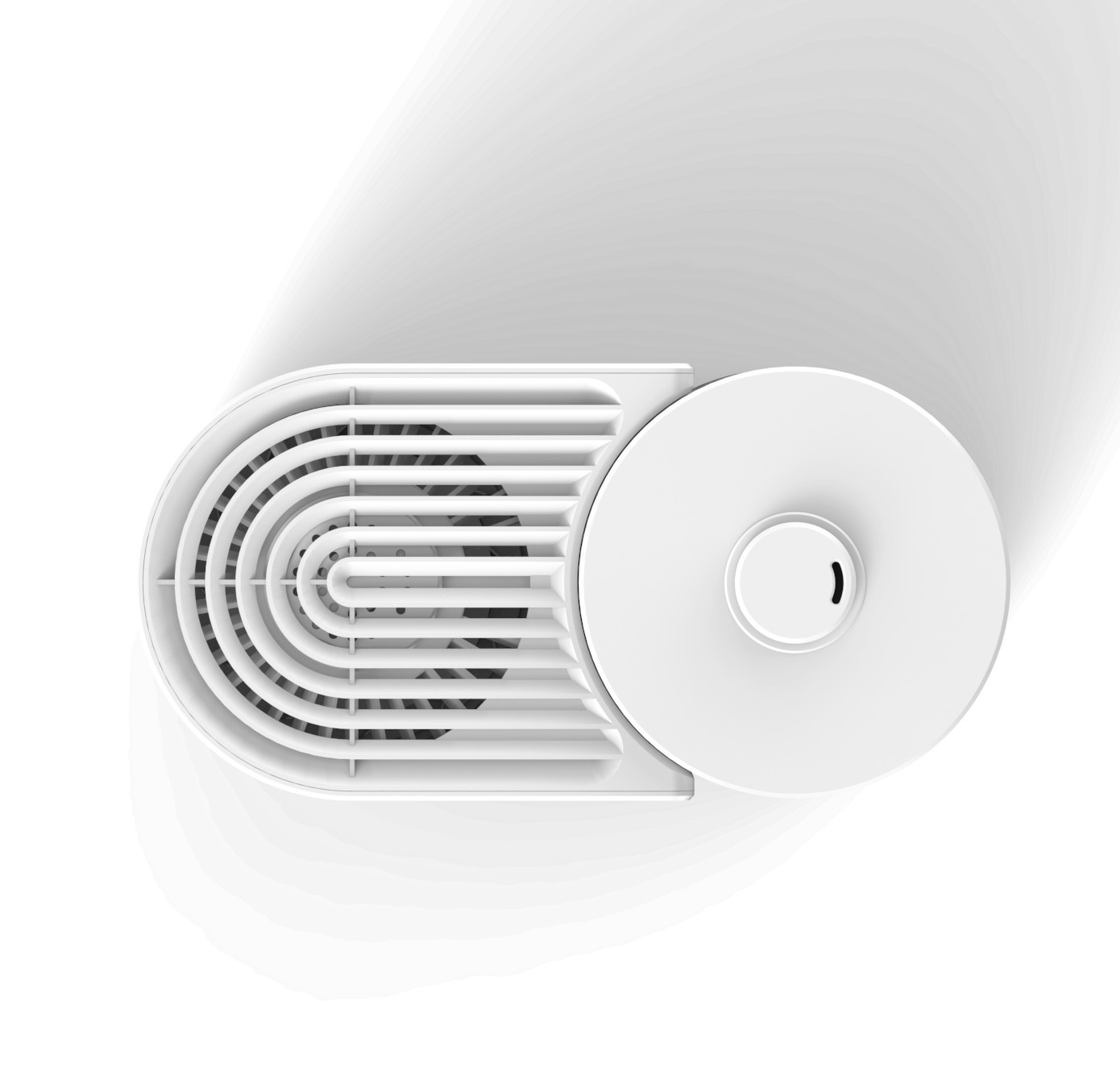

4. Product Pictures



EPI088 2 In 1 Air Purifier And Humidifier Particle Sensor Equipped PM2.5 Real Time Value 0





EPI088 2 In 1 Air Purifier And Humidifier Particle Sensor Equipped PM2.5 Real Time Value 1



FAQ

1. What is CADR?
CADR stands for “Clean Air Delivery Rate,” which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room. Clean Air Delivery Rate From air cleaner to air cleaner, compare the CADR numbers.
First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

2. What is CFM and CMH of CADR?
1 CFM=1.71CMH

3. TROUBLESHOOTING GUIDE
A. Unit shuts off unexpectedly or does not operate.
Check that the unit is plugged into a working electrical outlet.
Check that the motor protector is triggered.
Check that the filter is in the unit and locked.
Check that the front panel is latched firmly in place.
B. No air circulating from unit
Unplug unit. Check filter. Replace filter if necessary.
C. Increase in noise level
Make sure the filter is clean. Replace if necessary.
D. Odors and smoke are not removed.
Clean or replace the filter if it appears to be heavily soiled.
E. The discharged air has an aroma or odor
Check to see if the filter is heavily soiled. Replace the filter. Turn off the Ionizer
F. Air quality indicator constantly shows poor air quality
Wipe the lens with a clean cloth or vacuum to remove any dust that has settled on the sensor.
G. Filter change indicator flicks
Need to manual reset by long pressing filter change icon for 5 seconds, then release after heard the buzzer
H. The unit can not power on without buzzer and power icon lighting
Replace with new power PCBA
I. The unit can power on with power icon lighting, but speed can not be set.
Replace with new control PCBA
J. The unit can power on but some displays show defective
Replace with new control PCBA
K. The unit’s PM 2.5 digital value shows different from ambient environment within 30% tolerance.
Comply with particle sensor spec.
