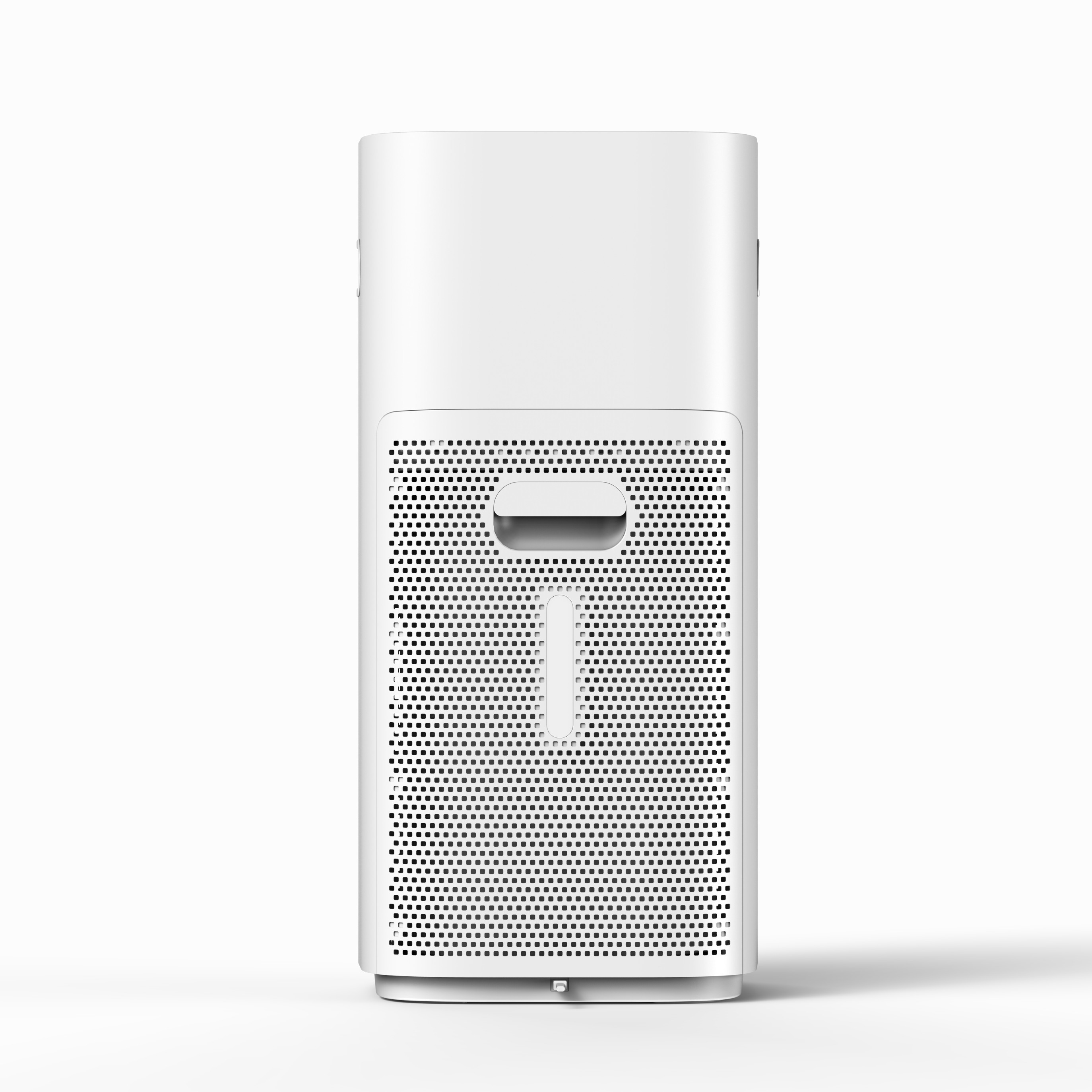

Kill Virus 600m3/h True Hepa Filter , UV HEPA Air Purifier With PM2.5 VOC Sensor

Product Description

 EPI630 Air Purifier with True Hepa Filter UV Air Cleaner Kill Bacteria and Virus Eliminate Pollen Pet Hair Dander


Product Feature

(1) Meet low power requirements (standby less than 2W)

(2) Timer function

(3) PM2.5 digital display and light bar display,VOC light bar display

(4) UVC LED

(5) Child lock

(6) WIFI APP control

(7) Fiter reset
  (8) Automatically switch off when inlet panel removed


Product Parameter

(1) Voltage:220VAC±20% /50Hz；
(2) Power:54W
(3) PM2.5 display range:0-999ug/m³
(4) Particle CADR:600m³/h(-10%),CCM:P4
(5) Noise:<58dB(A)
(6) UVC LED Power:0.5W
(7) Timing Error:±2%
(8) Definition of rotating speed and air volume


Product function introduction

(1) Panel and display function


Display function

No.	Icon	Definition	Instruction
1		PM2.5 light display	RGB 3 color light
		TVOC light display	RGB3 color light
2		PM2.5digital display, show “- - -” when remove the filter panel	White light, high light
3		PM2.5 digital display indicator	White light, high light
4		TVOC light display indicator	White light, high light
5		Power on indicator bar,long time bright	White light, high light

(2) Button and indicator light function:(high light bule color button light )

Button function

ITEM	KEY NAME	FUNCTION
1		UV Button, short press for UV switch on-off, long press 3 sec for child lock switch on-off
2		1/2/4/8 cycle timer function
3		Power button
4		Mode button, short press for auto mode, sleep mode, 1/2/3 speed cycle
5		WIFI button, long press 3 sec for WIFI network setting
6		Filter reset button, long press for 10 sec for filter reset
7		Test mode button, long press 3 sec for testing mode
8		PM2.5 sensitivity button, long press for 3 sec for PM2.5 sensitivity mode




Detail of four stages of filters
1. Pre-filter: Removes particles easily seen by the (e.g.dust, hair and pet dander)
2. HEPA filter: Removes 99.97% of all particles larger than 0.3 microns
3. Activated Carbon filter:Absorboing volatile organic compounds such as secondhand smoke and kinds of polluting gases
4. Anion:produce large amounts of negative ions,physical adsorption,eliminate odors,has a strong adsorption
