Name: EPI380 Healthlead air purifier, efficiently remove Pollen under High wind speed, 1-24H timer shut down function setting
Brand: Healthlead
SKU: EPI380
Rating: 4.5 (162 reviews)

Detail Information
Product Description

Detail Information
Product Size:	330×330×608mm	Input Power:	100-240VAC, 50/60Hz 1.5A,
Output Power:	24VDC 2.5A	Four Color Light:	Show Air Quality Grade.
Filter Service Life:	2000h	Sensor:	Particle And Light Sensor
CADR (particle):	350 M³/h	Child Lock:	Yes
Filter Exchange Alert:	Yes	Speed Set:	1,2,3,4
Auto Mode:	Automatically Adjusts The Gear Of The Motor(1,2,3,4)	WIFI Function:	APP Control

Product Description

EPI500 Household Air Purifier Ionizer function UV sterilizer Kill the bacteria and Virus Child Lock Sleep Mode

1. Production description

1. This product is suitable for office, home and other indoor environments;

2. Efficient filtration and adsorption (including lint, dust particles, pollen, mites, organic gases, etc.)

3. simple functions, with filtration, speed control, timing, automatic, filter life timing reset function.

4. The display operation panel is placed on the top plane, and it is easy to operate.

5. Auto Mode function: The machine automatically adjusts the gear of the motor to work by monitoring the concentration size of PM2.5 in the air in real time, while other functions remain unchanged.

6. PM2.5 level color display (green for excellent air quality, blue for good air quality, yellow for poor air quality, red for serious air quality) and PM2.5 display value range: 000-500ug/m3.

7. Speed definition

Wind speed gear	sleep mode	1	2	3	4	standby
Rotational speed(RPM/Min)	600±50	700±50	1300±50	1800±50	2400±50	N/A
Whole machine input power (with filter)	3.2±0.5W	6.5±1W	11±2W	20±2W	43±4W	<1.5W

2. Main features

OEM Price	negotiable
MOQ	1000
Product status	Lauch
Tooling status	Finished
Lead Time	45days
Product size	330×330×608mm
gross weight/net weight	7kg/9kg
quick smoke	Yes
speed	1,2,3,4
kill bacteria	Yes
PM2.5 display	Yes,color and digital display
sleep mode	Yes
Plasma	YES
filter exchange alert	YES
child lock	YES
timer seting	24小时定时
dust sensor	YES
VOC sensor	NO
motor	DC/AC(optional)
Control Panel	Touch button
Wifi fuction	YES
Loading Qty(20'/40'40'HQ)	40HQ 650pcs
Product weight:	7kg
Gift box Size:	382382671mm
Gift box Gross weight:	9KG

3. Main Specification

Specification

1: Standby power requirements (less than 1.5W).

2: Euro supply voltage: 230VAC ±10% 50Hz.

2: British Standard supply voltage: 240VAC ±10% 50Hz.

2:American Standard supply voltage:120VAC ±10% 60Hz

3: rated power 50W; rated current: 0.61A.

4: Low-voltage start for European regulation: 184VAC/50Hz.

4: Low-voltage start-up for British regulations: 192VAC/50Hz.

4: Low-voltage start-up for USA regulations: 96VAC/60Hz.

5: CADR (particle): 350 m³/h -10%

CADR (gaseous): 70 m³/h -10%

6: CCM (particle): P4; CCM (gaseous): F4.

7: Purification energy efficiency: high efficiency level

8: noise: ≤ 61 dB (A) sound pressure level

4. Product Images

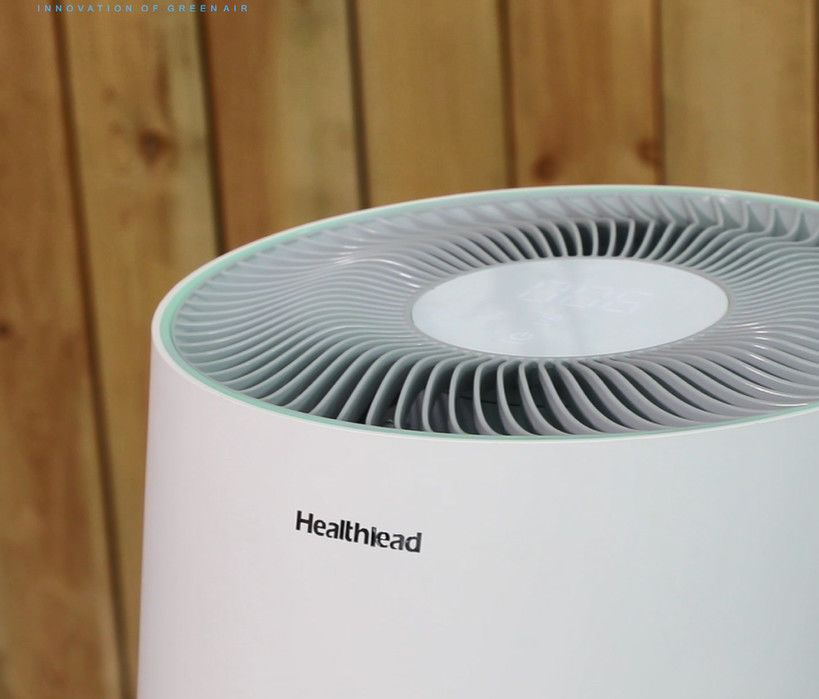

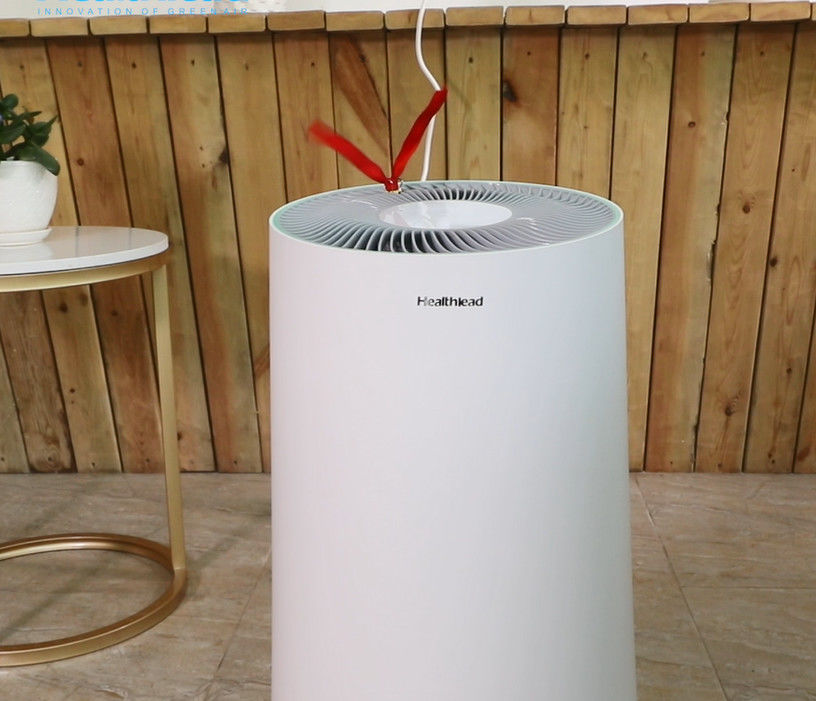

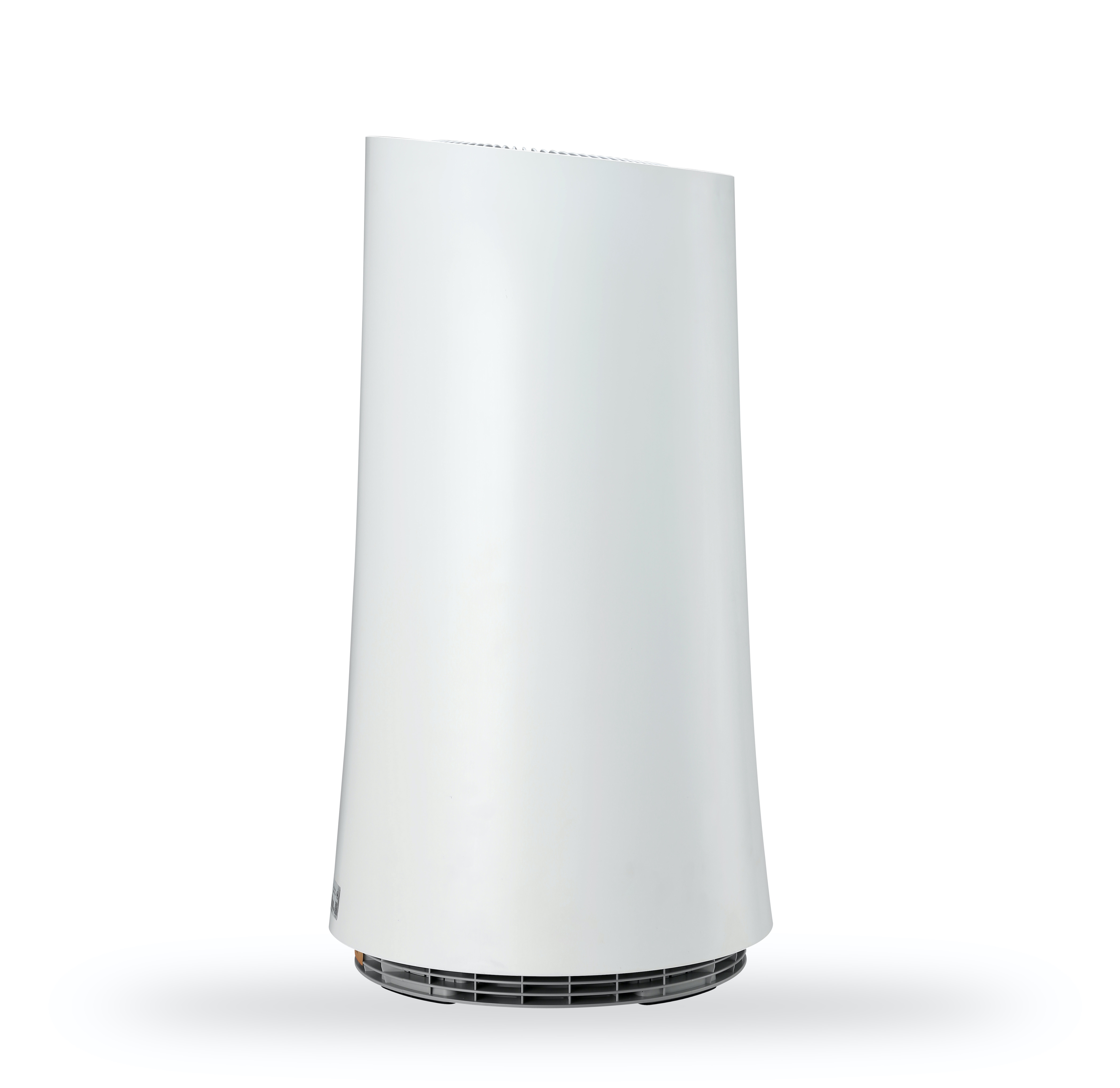

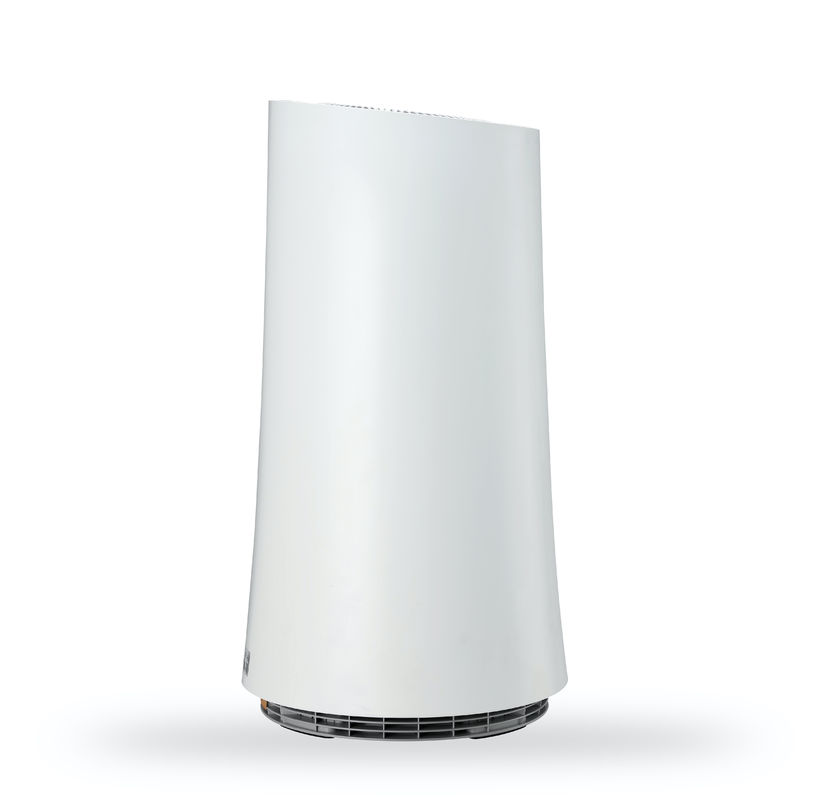

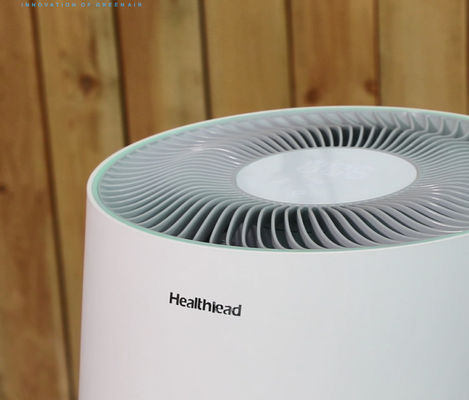

EPI380 Healthlead air purifier, efficiently remove Pollen under High wind speed, 1-24H timer shut down function setting 0

EPI380 Healthlead air purifier, efficiently remove Pollen under High wind speed, 1-24H timer shut down function setting 1

4. Packing & Delivery

MOQ: 1000 pcs

Production Capacity:1000pcs

Lead Time:45days

Defective rate: 1%

Product size	266330608mm
Carton box size	398396700
Unit weight	6.5kg
Container quantity	20’	40’	40’HQ
Container quantity	210pcs	450pcs	540pcs

EPI380 Healthlead air purifier, efficiently remove Pollen under High wind speed, 1-24H timer shut down function setting 2

5. Company environment

FAQ

1.What is CADR?

CADR stands for “Clean Air Delivery Rate,” which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room. Clean Air Delivery Rate From air cleaner to air cleaner, compare the CADR numbers.

First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

2. What is CFM and CMH of CADR?

1 CFM=1.71CMH

3. TROUBLESHOOTING GUIDE
A. Unit shuts off unexpectedly or does not operate.

Check that the unit is plugged into a working electrical outlet.

Check that the motor protector is triggered.

Check that the filter is in the unit and locked.

Check that the front panel is latched firmly in place.
B. No air circulating from unit

Unplug unit. Check filter. Replace filter if necessary.
C. Increase in noise level

Make sure the filter is clean. Replace if necessary.
D. Odors and smoke are not removed.

Clean or replace the filter if it appears to be heavily soiled.
E. The discharged air has an aroma or odor

Check to see if the filter is heavily soiled. Replace the filter. Turn off the Ionizer
F. Air quality indicator constantly shows poor air quality

Wipe the lens with a clean cloth or vacuum to remove any dust that has settled on the sensor.
G. Filter change indicator flicks

Need to manual reset by long pressing filter change icon for 5 seconds, then release after heard the buzzer
H. The unit can not power on without buzzer and power icon lighting

Replace with new power PCBA
I. The unit can power on with power icon lighting, but speed can not be set.

Replace with new control PCBA
J. The unit can power on but some displays show defective

Replace with new control PCBA
K. The unit’s PM 2.5 digital value shows different from ambient environment within 30% tolerance.

Comply with particle sensor spec.
L. The unit’s PM 2.5 digital value shows different from ambient environment beyond 30% tolerance.

Replace with new particle sensor.

M. The unit’s VOC digital value shows different from ambient environment.

Replace with new VOC sensor.

N. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.

Remove filter plastic bag and re-install filter, then re-start.

O. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.

Replace with new motor

P. No ion comes out

Disassembly the unit, and re-insert ionizer module wire socket

Q. There has odor coming out from outtake grill

Replace with new filter

R. The unit is power on but some display missed

Replace with new display board.

S. Wifi can not be connected

Reset the route as 2.4G

T. Wifi can not be connected

Replace with new Wifi module

U. Power button is invalid after turn on with heard buzzer

Replace with new control panel or magnetic switch board

Tag:

Product Details:
Place of Origin:	Guangdong, China
Brand Name:	Healthlead
Certification:	CE(LVD)/CE(EMC)/ETL/FCC
Model Number:	EPI380
Payment & Shipping Terms:
Minimum Order Quantity:	1000piece
Price:	Negotiable
Packaging Details:	EPI380 one piece product in one Carton box. /Carton size 398396700mm
Delivery Time:	45 Days
Payment Terms:	L/C, T/T
Supply Ability:	1000piece/day
