Name: Release Negative Ion Desktop Hepa Air Purifier Round Shaped Personal Air Cleaner EPI808
Brand: Healthlead
SKU: EPI808
Rating: 4.5 (153 reviews)

Detail Information
Product Description

Detail Information
Product Name:	Desktop Air Cleaner	Unit Weight:	0.48 Kgs
Work Voltage:	DC5V	Material:	ABS
Product Size:	125X125X135mm	Package:	Giftbox/Carton
Master Carton Size:	320X320 X 510 Mm	N.W.: /Ctn:	6.96 Kgs
High Light:	negative ion Desktop Hepa Air Purifier , round Desktop Hepa Air Purifier , personal air cleaner EPI808

Product Description

EPI808, round-shaped in small size and light weight personal air purifier, Release negative ion to kill bacteria

Production Function and Specifications

Model	EPI808
Product Name	Hepa Air Purifier
Function	Collect all kinds of dusts as below, floating mildew, fungus, and virus, acarus inspect & irritability substance
	and dejecta,fir pollen smoke, pet dander,lamblack,co element, dust and sand.
	Eliminate manifold odors such as pet odor, closet odor, human odor, dish odor, midew odor, smoke odor.
	Decompose some poisonous and harmful gas, such as form aldehyde, benzene, xulene etc.
	Kill bateria
	Release negative ion
Specification	Work voltage: DC5V
Specification	Unit Weight: 0.48 kgs
Features	99% Hepa type filter
	Washable pre-filter
	More than 1 million negative ion output
	Electric control with LED display
Material	Fireproofing ABS
Product Size	125X125X135mm
Package	Giftbox/Carton
Giftbox Size	152X152X163 mm
Master Carton Size	320X320 X 510 mm
Pcs/Ctn	12 pcs/ctn
N.W.: /Ctn	6.96 kgs
G.W.:./Ctn	7.96 kgs
20 FCL	5,040 pcs
40 FCL	10,800 pcs
40 HQ	12,600 pcs
Artwork/Logo:	customer's logo or our logo "Healthlead "
Standard Color	White,black
Approval	CE ,GS, ETL
ROHS Directive	Yes
Price Terms	FOB shenzhen
Period of validity	The price valid for three months
MOQ	3,000 pcs
Payment Term	T/T or L/C at sight
Lead Time	45 days
Production Capacity	2,000 units / per day
Warrantee Period	1 year
Made In China	Yes

Certificates

Release Negative Ion Desktop Hepa Air Purifier Round Shaped Personal Air Cleaner EPI808 0

Release Negative Ion Desktop Hepa Air Purifier Round Shaped Personal Air Cleaner EPI808 1

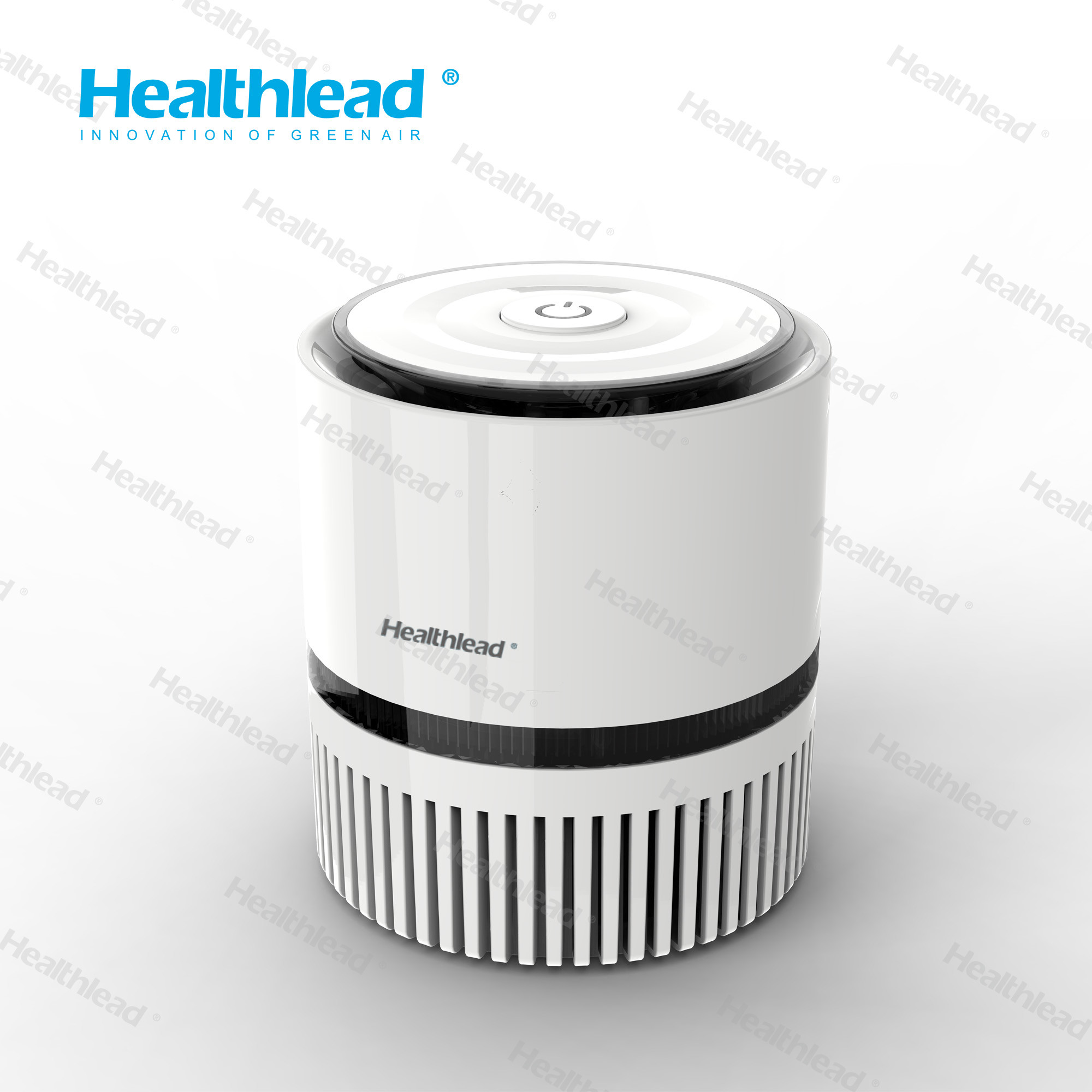

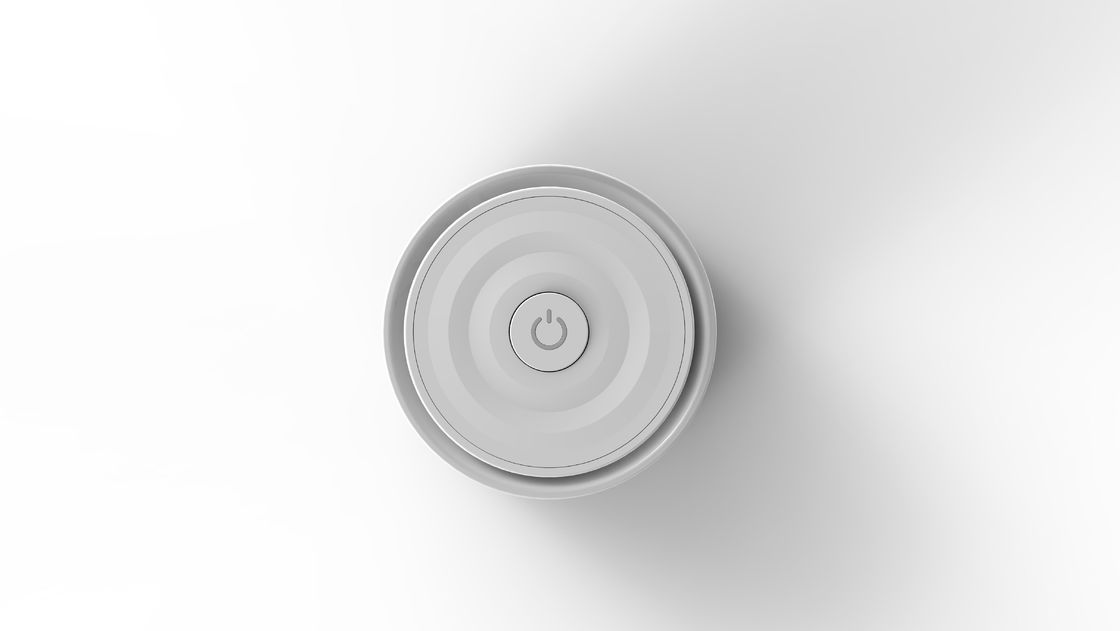

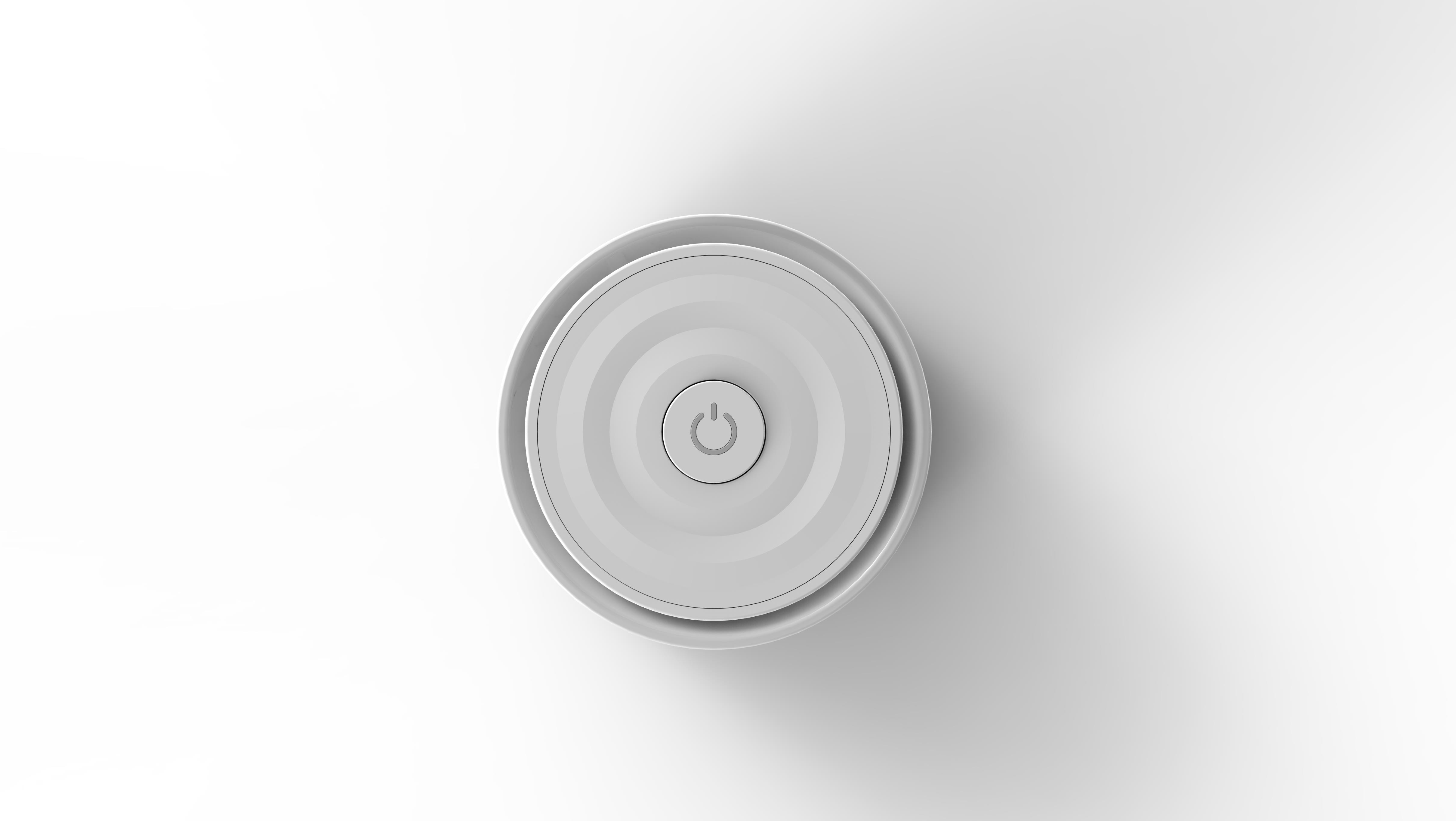

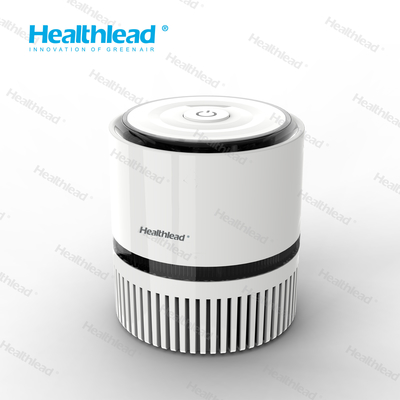

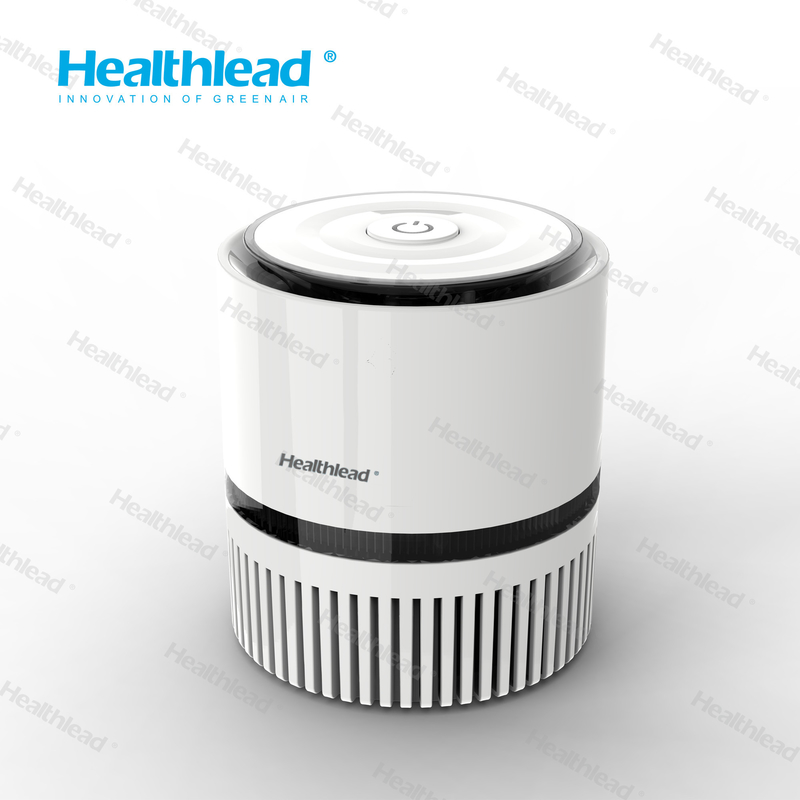

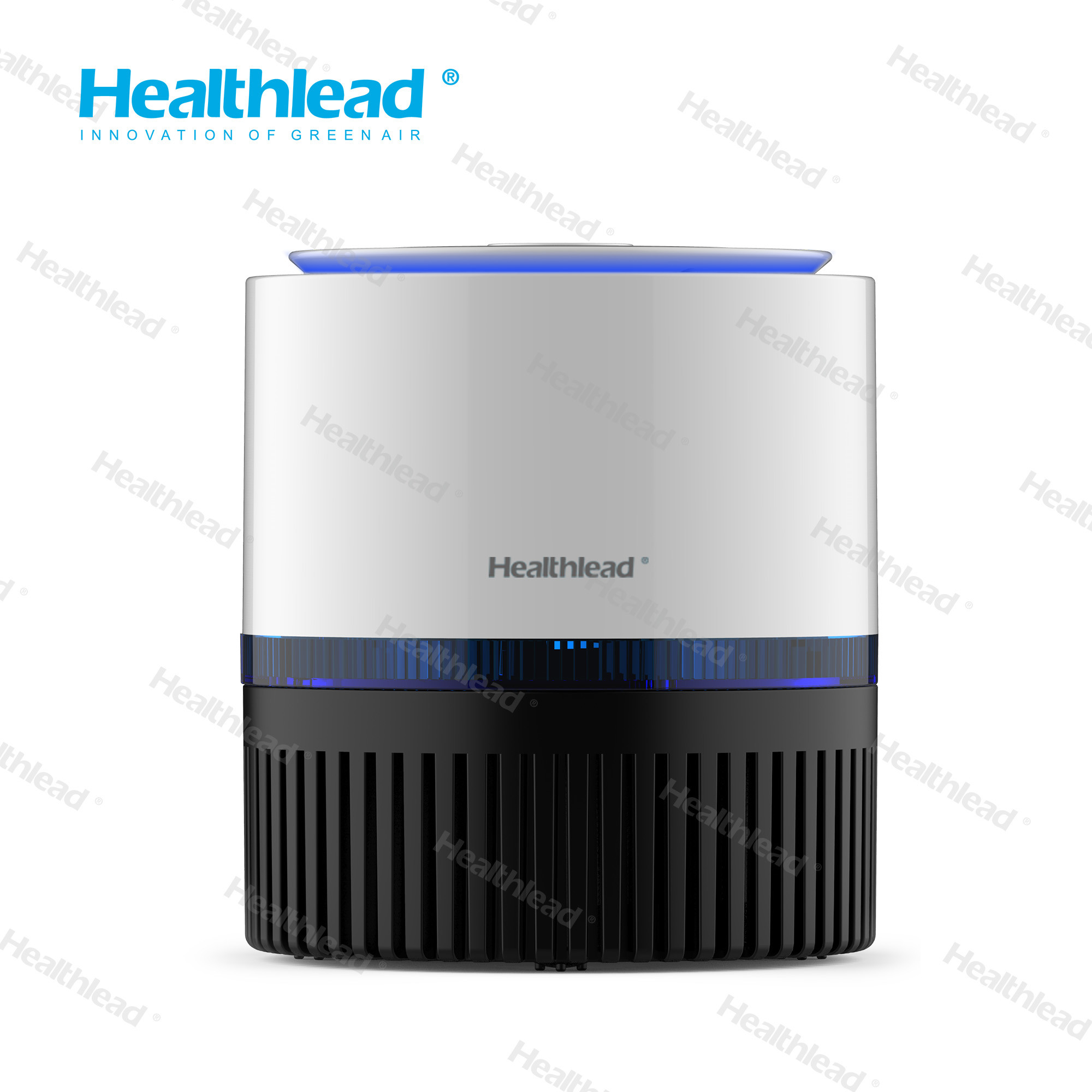

Product Pictures

Release Negative Ion Desktop Hepa Air Purifier Round Shaped Personal Air Cleaner EPI808 2

Release Negative Ion Desktop Hepa Air Purifier Round Shaped Personal Air Cleaner EPI808 3

Release Negative Ion Desktop Hepa Air Purifier Round Shaped Personal Air Cleaner EPI808 4

Packaging and shipment

Release Negative Ion Desktop Hepa Air Purifier Round Shaped Personal Air Cleaner EPI808 5

Release Negative Ion Desktop Hepa Air Purifier Round Shaped Personal Air Cleaner EPI808 7

Company Profie

Healthlead is one major leading professional air purifier, mini dehumidifier and environmental protection material developing, manufacturing and marketing high- tech enterprise, Registered capital is US$10 million and factory coverage is 42,000 sq meters . Owing with professional and innovating product development capability, Healthlead becomes key OEM & ODM supplier of mostly im porter and distributor in North America, China and Europe etc. Healthlead factory quality system was approved by ISO9001, ISO1400 1, BSCI, and authorized by US JCS, Whirlpool, The Home Depot, TTI, Germguardian, Homedics, Bissell, Europe ALDI, LIDL, B&Q, Auchan, China Suning, Huawei, Haier, Konka, TCL, Airmate, Chigao, Royalstar, Westinghouse for factory audit. The factory owns in-house safety approval lab to performance and relia bility test to meet different customer’s product need. Daily production capability is 20,000 units to 25,000 units in order to on-time delivery.

Release Negative Ion Desktop Hepa Air Purifier Round Shaped Personal Air Cleaner EPI808 8

Release Negative Ion Desktop Hepa Air Purifier Round Shaped Personal Air Cleaner EPI808 9

Release Negative Ion Desktop Hepa Air Purifier Round Shaped Personal Air Cleaner EPI808 10

Release Negative Ion Desktop Hepa Air Purifier Round Shaped Personal Air Cleaner EPI808 11

Release Negative Ion Desktop Hepa Air Purifier Round Shaped Personal Air Cleaner EPI808 13

FAQ

1.What is CADR?
CADR stands for “Clean Air Delivery Rate,” which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room. Clean Air Delivery Rate From air cleaner to air cleaner, compare the CADR numbers.
First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

2. What is CFM and CMH of CADR?
1 CFM=1.71CMH

3. TROUBLESHOOTING GUIDE
A. Unit shuts off unexpectedly or does not operate.
Check that the unit is plugged into a working electrical outlet.
Check that the motor protector is triggered.
Check that the filter is in the unit and locked.
Check that the front panel is latched firmly in place.
B. No air circulating from unit
Unplug unit. Check filter. Replace filter if necessary.
C. Increase in noise level
Make sure the filter is clean. Replace if necessary.
D. Odors and smoke are not removed.
Clean or replace the filter if it appears to be heavily soiled.
E. The discharged air has an aroma or odor
Check to see if the filter is heavily soiled. Replace the filter. Turn off the Ionizer
F. Air quality indicator constantly shows poor air quality
Wipe the lens with a clean cloth or vacuum to remove any dust that has settled on the sensor.
G. Filter change indicator flicks
Need to manual reset by long pressing filter change icon for 5 seconds, then release after heard the buzzer
H. The unit can not power on without buzzer and power icon lighting
Replace with new power PCBA
I. The unit can power on with power icon lighting, but speed can not be set.
Replace with new control PCBA
J. The unit can power on but some displays show defective
Replace with new control PCBA
K. The unit’s PM 2.5 digital value shows different from ambient environment within 30% tolerance.
Comply with particle sensor spec.

L. The unit’s PM 2.5 digital value shows different from ambient environment beyond 30% tolerance.

Replace with new particle sensor.

M. The unit’s VOC digital value shows different from ambient environment.

Replace with new VOC sensor.

N. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.

Remove filter plastic bag and re-install filter, then re-start.

O. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.

Replace with new motor

P. No ion comes out

Disassembly the unit, and re-insert ionizer module wire socket

Q. There has odor coming out from outtake grill

Replace with new filter

R. The unit is power on but some display missed

Replace with new display board.

S. Wifi can not be connected

Reset the route as 2.4G

T. Wifi can not be connected

Replace with new Wifi module

U. Power button is invalid after turn on with heard buzzer

Replace with new control panel or magnetic switch board
