Name: Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808
Brand: Healthlead
SKU: EPI808
Rating: 4.8 (190 reviews)

Detail Information
Product Description

Detail Information
Standard Color:	White,black	Function:	Kill Bacteria
Filter:	HEPA	Work Voltage:	DC5V
Product Dimension:	125X125X135mm	N.W.: /Ctn:	6.96 Kgs
G.W.:./Ctn:	7.96 Kgs	Artwork/Logo:	Customer's Logo Or Our Logo "Healthlead "
Approval:	CE ,GS, ETL	Price Terms:	FOB Shenzhen
Warrantee Period:	1 Year	Applicable Area (㎡):	Personal
Standby Power:	<0.5W. 4	Purification Efficiency CADR:	5CFM
Negative Ion Concentration:	> 1 Million/cm3	Speed:	2 Gear
Button:	Touch Button	Operation:	One Key Operate
Indicator:	Blue Light Indicator
High Light:	desktop quiet hepa air purifier , Healthlead quiet hepa air purifier , 5CFM quiet hepa air purifier

Product Description

EPI808, extremely low power used desktop air purifier, with Sleep mode quite at the night, and high speed to clear air.

Product description

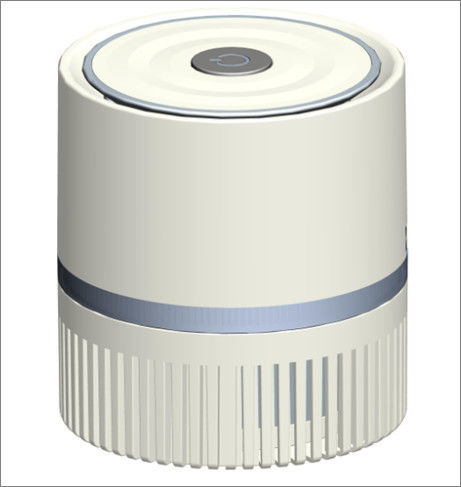

1. This product is one of our desktop air purifier, the body is round, beautiful and generous appearance, white, air inlet on all sides, air outlet above, operation panel at the top. The following figure.

2. This product is suitable for office, home and other indoor environments, with PM2.5 value display, efficient filtration and adsorption (including lint, dust particles, pollen, mites and organic gases, etc.), separate control of lighting, low power consumption and other functions and features, and easy to operate.

Product functions:

1. Highly effective in removing PM2.5, smoke, dust, pollen, mites and other allergic particles.

2. Remove harmful toxic gases released from indoor decoration, furniture, etc.

3. meet the requirements of low power consumption (standby less than 0.5W).

4. separate light off function.

Technical parameters.

1. Applicable power supply: 230VAC ±10% 50Hz European standard

240VAC ±10% 50Hz British standard

2. Rated power: 2W Rated current: 0.05A

3. standby power: <0.5W. 4;

4. Low voltage start: 184VAC 50Hz. 5;

5. Purification efficiency CADR: 5CFM(-10%)

6. Top-grade noise: ≤ 55dB(A) (sound pressure level)

7. Negative ion concentration: > 1 million/cm3

8. power and speed.

Gear	Sleep	High grade
Rotation Speed (RPM)	1800±10%	1800±10%
Rate(W)	1.5±0.5W	1.7±0.5W

Certificates

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 0

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 1

Product Pictures

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 2

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 3

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 4

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 5

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 7

Packaging and shipment

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 8

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 10

Company Profie

Healthlead is one major leading professional air purifier, mini dehumidifier and environmental protection material developing, manufacturing and marketing high- tech enterprise, Registered capital is US$10 million and factory coverage is 42,000 sq meters . Owing with professional and innovating product development capability, Healthlead becomes key OEM & ODM supplier of mostly im porter and distributor in North America, China and Europe etc. Healthlead factory quality system was approved by ISO9001, ISO1400 1, BSCI, and authorized by US JCS, Whirlpool, The Home Depot, TTI, Germguardian, Homedics, Bissell, Europe ALDI, LIDL, B&Q, Auchan, China Suning, Huawei, Haier, Konka, TCL, Airmate, Chigao, Royalstar, Westinghouse for factory audit. The factory owns in-house safety approval lab to performance and relia bility test to meet different customer’s product need. Daily production capability is 20,000 units to 25,000 units in order to on-time delivery.

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 13

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 14

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 15

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 16

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 17

Desktop Quiet Hepa Air Purifier With Sleep Mode Quite At The Night EPI808 18

Our Advantages

20 years experience in airpurifier OEM & ODM service. Approved by ISO9001,2015, ISO14001. ETL, GS, CE safety laboratories authorized by Intertek. More than 30 R& D engineers. Six-stage of air purification system combined pre-filter, Hepa filter, active carbon filter, Nona-silver antibacterial, ionizer, photocatalyst filter, UV.

FAQ

1.What is CADR?
CADR stands for “Clean Air Delivery Rate,” which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room. Clean Air Delivery Rate From air cleaner to air cleaner, compare the CADR numbers.
First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

2. What is CFM and CMH of CADR?
1 CFM=1.71CMH

3. TROUBLESHOOTING GUIDE
A. Unit shuts off unexpectedly or does not operate.
Check that the unit is plugged into a working electrical outlet.
Check that the motor protector is triggered.
Check that the filter is in the unit and locked.
Check that the front panel is latched firmly in place.
B. No air circulating from unit
Unplug unit. Check filter. Replace filter if necessary.
C. Increase in noise level
Make sure the filter is clean. Replace if necessary.
D. Odors and smoke are not removed.
Clean or replace the filter if it appears to be heavily soiled.
E. The discharged air has an aroma or odor
Check to see if the filter is heavily soiled. Replace the filter. Turn off the Ionizer
F. Air quality indicator constantly shows poor air quality
Wipe the lens with a clean cloth or vacuum to remove any dust that has settled on the sensor.
G. Filter change indicator flicks
Need to manual reset by long pressing filter change icon for 5 seconds, then release after heard the buzzer
H. The unit can not power on without buzzer and power icon lighting
Replace with new power PCBA
I. The unit can power on with power icon lighting, but speed can not be set.
Replace with new control PCBA
J. The unit can power on but some displays show defective
Replace with new control PCBA
K. The unit’s PM 2.5 digital value shows different from ambient environment within 30% tolerance.
Comply with particle sensor spec.

L. The unit’s PM 2.5 digital value shows different from ambient environment beyond 30% tolerance.

Replace with new particle sensor.

M. The unit’s VOC digital value shows different from ambient environment.

Replace with new VOC sensor.

N. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.

Remove filter plastic bag and re-install filter, then re-start.

O. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.

Replace with new motor

P. No ion comes out

Disassembly the unit, and re-insert ionizer module wire socket

Q. There has odor coming out from outtake grill

Replace with new filter

R. The unit is power on but some display missed

Replace with new display board.

S. Wifi can not be connected

Reset the route as 2.4G

T. Wifi can not be connected

Replace with new Wifi module

U. Power button is invalid after turn on with heard buzzer

Replace with new control panel or magnetic switch board

Tag:

Product Details:
Place of Origin:	China
Brand Name:	Healthlead
Certification:	CQC/CE(LVD)/CE(EMC)/ETL
Model Number:	EPI808
Payment & Shipping Terms:
Minimum Order Quantity:	3000pcs
Price:	negotiable
Packaging Details:	one piece in one giftbox, 12pcs in one carton and carton dimension: 320X320 X 510 mm
Delivery Time:	45 days
Payment Terms:	L/C, T/T
Supply Ability:	2000pcs/day
