Home ProductsDesktop HEPA Air PurifierEPI081 4 Stage Timer Shutdown Portable Hepa Air Purifier Three Stage Speed Setting
EPI081 4 Stage Timer Shutdown Portable Hepa Air Purifier Three Stage Speed Setting
EPI081 4 Stage Timer Shutdown Portable Hepa Air Purifier Three Stage Speed Setting EPI081 4 Stage Timer Shutdown Portable Hepa Air Purifier Three Stage Speed Setting EPI081 4 Stage Timer Shutdown Portable Hepa Air Purifier Three Stage Speed Setting EPI081 4 Stage Timer Shutdown Portable Hepa Air Purifier Three Stage Speed Setting

EPI081 4 Stage Timer Shutdown Portable Hepa Air Purifier Three Stage Speed Setting

Product Details:
Place of Origin: Guangdong, China
Brand Name: Healthlead
Certification: CE(LVD) CE(EMC) PSE
Model Number: EPI081
Payment & Shipping Terms:
Minimum Order Quantity: 3000 Pieces
Price: Negotiable
Packaging Details: EPI081 General packaging with Carton only, 2pcs in one carton. carton size 425x425x300mm
Delivery Time: 45 Days
Payment Terms: L/C, T/T
Supply Ability: 3000pcs/day
Contact Now

Detail Information
CCM Value P4 Of Particulate Matter: P2 Filter: Four-stage Filter System
CADR Value Of Formaldehyde (㎥/h): 15 Button: Touch Control
Warranty: 1 Year Filter Reset: Filter Replacement Reminder And Reset Function
Negative Ion: Remove Dust CADR Value Of Particulate Matter (㎥/h): 80
Material: ABS Standard Color: White
Power: 100V/60Hz N.M./G.W. （kg）: 1.8/1.3
High Light:

4stage portable hepa air purifier

,

timer portable hepa air purifier

,

portable hepa filter air purifiers

Product Description

EPI081,Four-stage timer shutdown function and Three-stage speed setting, sleep mode give a good sleep at night.



Product Description

Product description

1.This product is designed and manufactured by our company, the overall square and simple, beautiful and generous appearance

2.This product is suitable for office, home and other indoor environments, efficient filtration and adsorption (including lint, dust particles, pollen, mites, organic gases, etc.), and simple functions, only filtration, speed control, breathing light function. The display operation panel is placed on the front of the machine, and the operation is simple and convenient.



The main function

1. Multilayer filtration system (washable pre-filter + HEPA filter + activated carbon filter + negative ion)

2. Breathing Light: optional

3. Sleep mode

4. Three fan speeds(1.2.3 + sleep)

5. Four timer setting power off (1.2.4.8)

6. HEPA Replacement Timing Function

7. Negative ion

8. Filter replacement reminder and reset functon: Filter life=3000H



Parameter index

Rated voltage (V/Hz) 220/50

Rated input power (W) 18

Maximum Noise (dB(A)/Sound Power Level 55

CADR value of particulate matter (㎥/h) 80

CCM value P4 of particulate matter P2

CADR value of formaldehyde (㎥/h) 15

CCM Value of particle F2

Applicable area (㎡)9.6

Product size (mm) 160*160*235

N.M./G.W. (kg):1.8/1.3

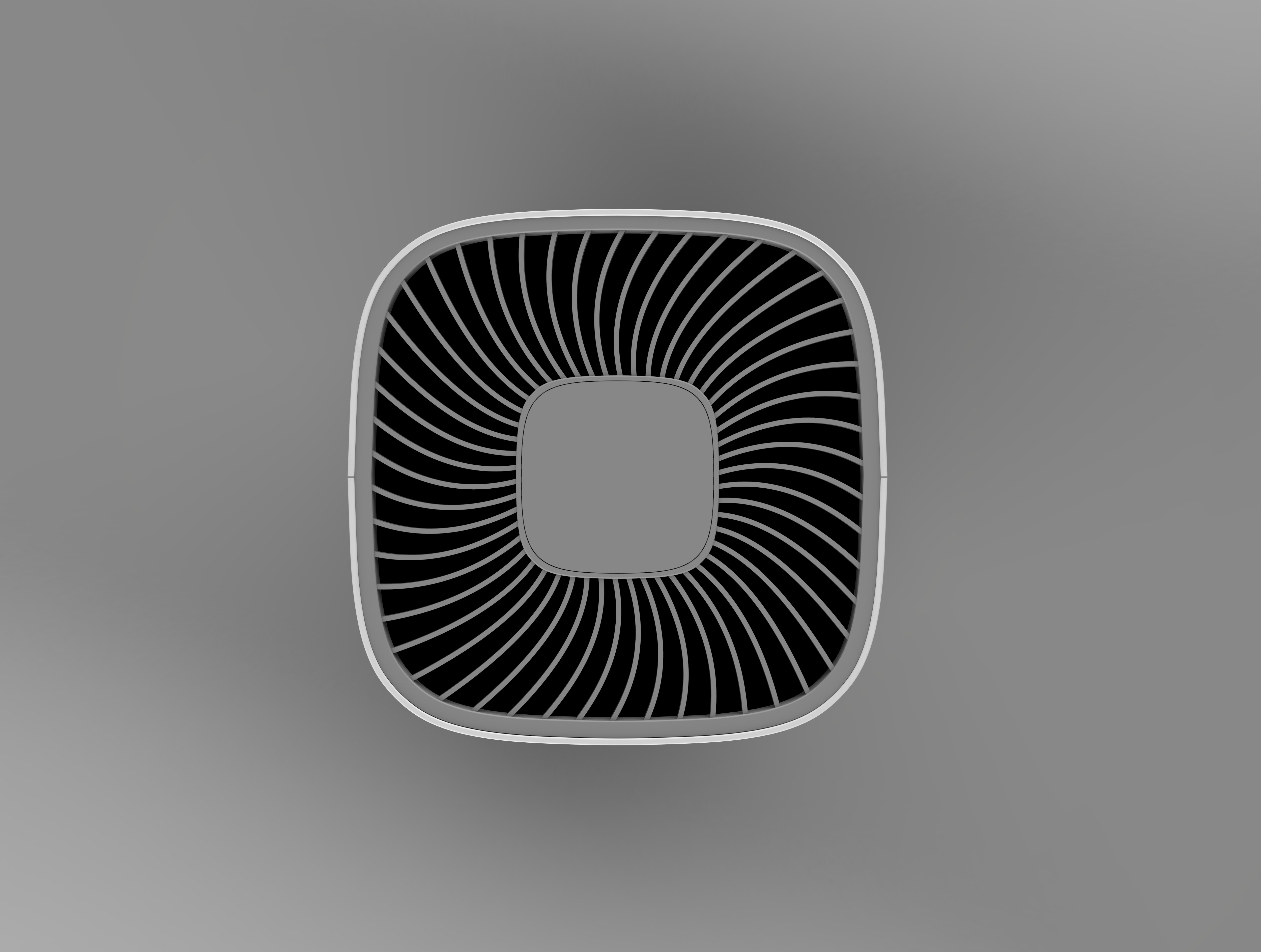

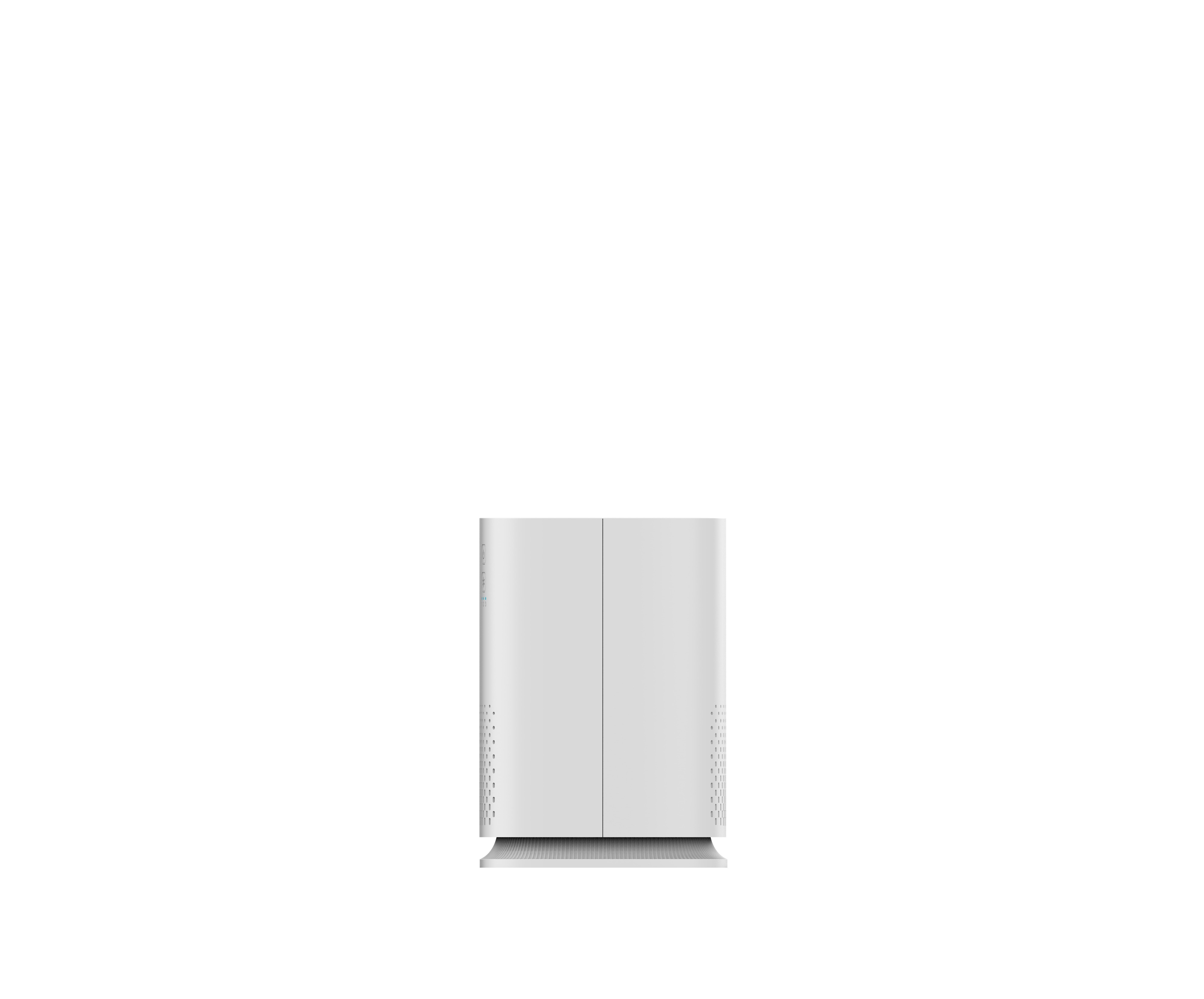

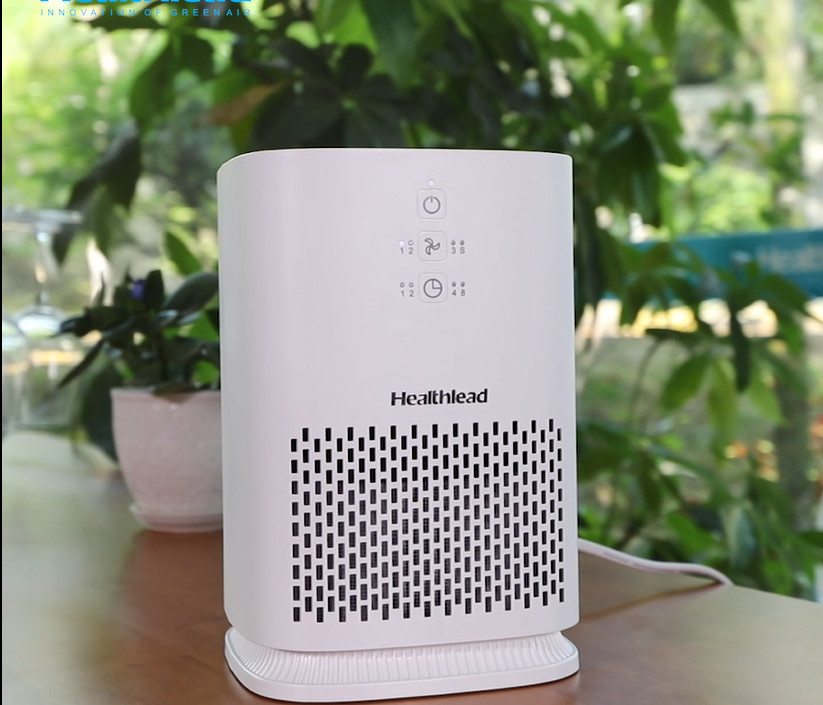

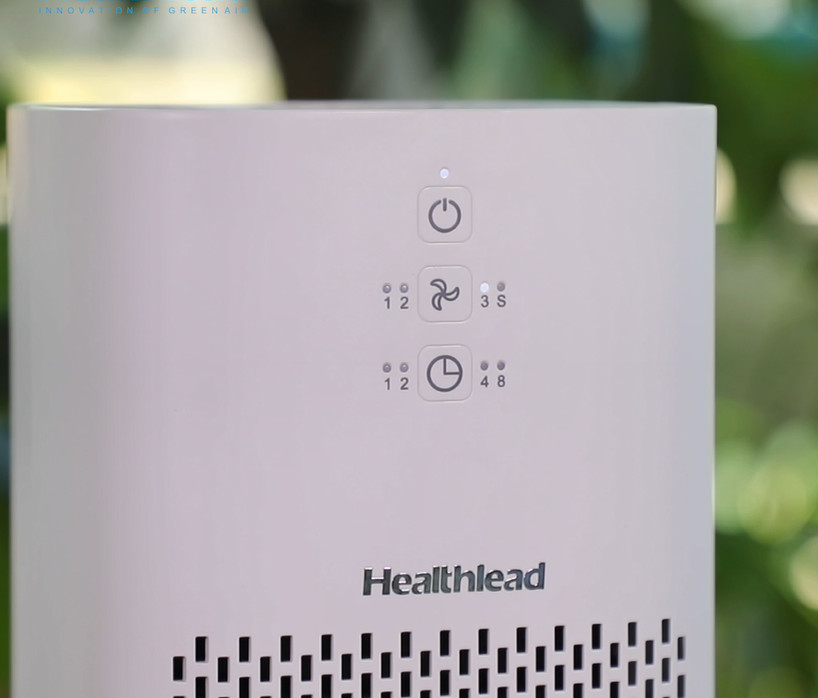

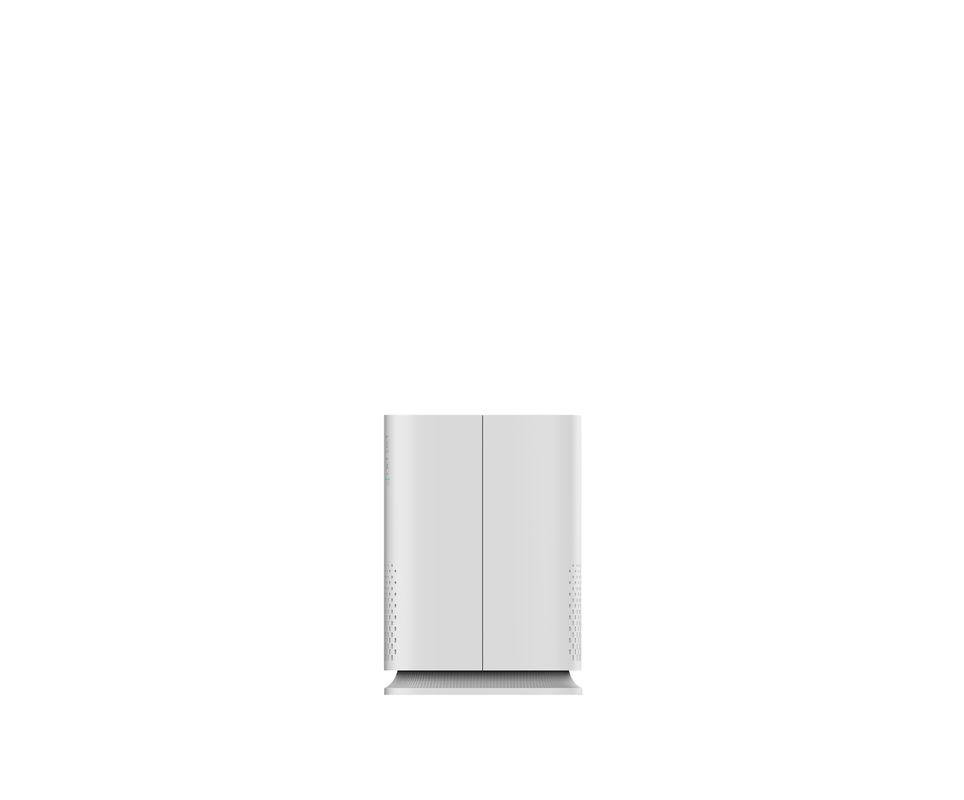

Procuct Pictures

EPI081 4 Stage Timer Shutdown Portable Hepa Air Purifier Three Stage Speed Setting 0

Packing and shipping



Product size

160*160*235mm

Carton box size

425x425x300mm

N.T/G.T

7kgs/8kgs

Container quantity

20’

40’

40’HQ

1820pcs

3920pcs

4480pcs

EPI081 4 Stage Timer Shutdown Portable Hepa Air Purifier Three Stage Speed Setting 1



Company introduction

Healthlead is one major leading professional air purifier, mini dehumidifier and environmental protection material developing, manufacturing and marketing high- tech enterprise, Registered capital is US$10 million and factory coverage is 42,000 sq meters . Owing with professional and innovating product development capability, Healthlead becomes key OEM & ODM supplier of mostly im porter and distributor in North America, China and Europe etc. Healthlead factory quality system was approved by ISO9001, ISO1400 1, BSCI, and authorized by US JCS, Whirlpool, The Home Depot, TTI, Germguardian, Homedics, Bissell, Europe ALDI, LIDL, B&Q, Auchan, China Suning, Huawei, Haier, Konka, TCL, Airmate, Chigao, Royalstar, Westinghouse for factory audit. The factory owns in-house safety approval lab to performance and relia bility test to meet different customer’s product need. Daily production capability is 20,000 units to 25,000 units in order to on-time delivery.

EPI081 4 Stage Timer Shutdown Portable Hepa Air Purifier Three Stage Speed Setting 2

Q&A

1.What is CADR
CADR stands for “Clean Air Delivery Rate,” which indicates the volume of filtered air delivered by an air purifier. CADR ratings show the effectiveness of how efficient the air purifier is at capturing fine particles from things like tobacco smoke and plant pollens from the room. Clean Air Delivery Rate From air cleaner to air cleaner, compare the CADR numbers.
First look at suggested room size. Then refer to the Clean Air Delivery Rate (CADR) numbers. The higher the number, the faster the unit filters the air.

2. What is CFM and CMH of CADR?
1 CFM=1.71CMH

3. TROUBLESHOOTING GUIDE
A. Unit shuts off unexpectedly or does not operate.
Check that the unit is plugged into a working electrical outlet.
Check that the motor protector is triggered.
Check that the filter is in the unit and locked.
Check that the front panel is latched firmly in place.
B. No air circulating from unit
Unplug unit. Check filter. Replace filter if necessary.
C. Increase in noise level
Make sure the filter is clean. Replace if necessary.
D. Odors and smoke are not removed.
Clean or replace the filter if it appears to be heavily soiled.
E. The discharged air has an aroma or odor
Check to see if the filter is heavily soiled. Replace the filter. Turn off the Ionizer
F. Air quality indicator constantly shows poor air quality
Wipe the lens with a clean cloth or vacuum to remove any dust that has settled on the sensor.
G. Filter change indicator flicks
Need to manual reset by long pressing filter change icon for 5 seconds, then release after heard the buzzer
H. The unit can not power on without buzzer and power icon lighting
Replace with new power PCBA
I. The unit can power on with power icon lighting, but speed can not be set.
Replace with new control PCBA
J. The unit can power on but some displays show defective
Replace with new control PCBA
K. The unit’s PM 2.5 digital value shows different from ambient environment within 30% tolerance.
Comply with particle sensor spec.

L. The unit’s PM 2.5 digital value shows different from ambient environment beyond 30% tolerance.
Replace with new particle sensor.
M. The unit’s VOC digital value shows different from ambient environment.
Replace with new VOC sensor.
N. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.
Remove filter plastic bag and re-install filter, then re-start.
O. The unit is power on with all the buttons normal work including power icon lighting, but no air outtake comes.
Replace with new motor
P. No ion comes out
Disassembly the unit, and re-insert ionizer module wire socket
Q. There has odor coming out from outtake grill
Replace with new filter
R. The unit is power on but some display missed
Replace with new display board.
S. Wifi can not be connected
Reset the route as 2.4G
T. Wifi can not be connected
Replace with new Wifi module
U. Power button is invalid after turn on with heard buzzer
Replace with new control panel or magnetic switch board
